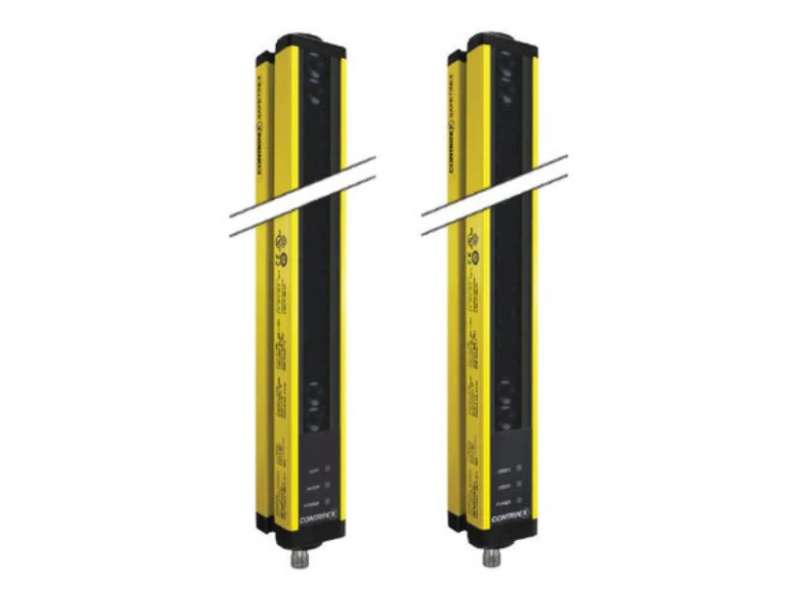

CONTRINEX Light curtain basic standard Type 4 Access Control 3 beams (access) Cat. 4, PL e, Type 4 - YCA-50K4-3X00-G012; 630-400-053/630-4
Light curtain basic standard Type 4 Access Control 3 beams (access) Cat. 4, PL e, Type 4 - YCA-50K4-3X00-G012; 630-400-053/630-400-054...
Цена по барање
Light curtain basic standard Type 4 Access Control 3 beams (access) Cat. 4, PL e, Type 4 - YCA-50K4-3X00-G012; 630-400-053/630-400-054
Short Specifications
YCA-50K4-3400-G012 / YCA-50K4-3500-G012
| Operating range | 1...50 m |
| Sender wavelength | IR 880 nm |
| Protective height | 832 mm / 1032 mm |
| Supply voltage | 24 |
| Polarity | PNP |
| Safety Level | Cat. 4, PL e, Type 4 |
| Housing size [mm] | 42 x 48 (standard) |
| Enclosure rating | IP 65 / IP 67 |
| Safety Type | Kit |
| Response time | 4.2 ms |
| Resolution | 3-beams (access) |
| Temperature range | -35...+60°C |
| Sensor Height | 1025 mm / 1154 mm |
| Product Range | Light curtain basic standard |
| Beam gap | 400 mm / 500 mm |
-
YCA-50x4-xxxx-G012 EN
