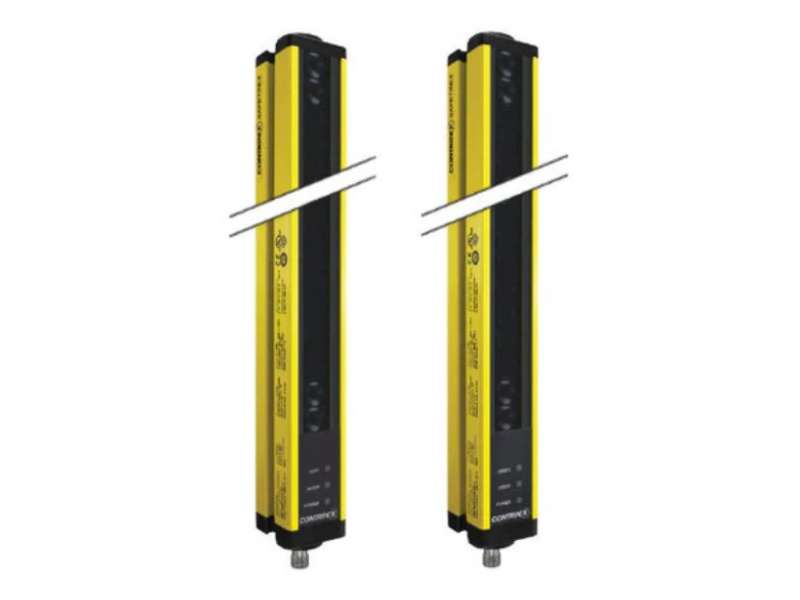

CONTRINEX Light curtain basic standard Type 4 Finger 14 mm (finger) Cat. 4, PL e, Type 4 - YBB-14K4-XXXX-G012; 630-400-027/630-400-039
Light curtain basic standard Type 4 Finger 14 mm (finger) Cat. 4, PL e, Type 4 ; YBB-14K4-XXXX-G012...
Price on request
Light curtain basic standard Type 4 Finger 14 mm (finger) Cat. 4, PL e, Type 4 ; YBB-14K4-XXXX-G012
| Operating range | 0.25...3.5 m |
| Sender wavelength | IR 950 nm |
| Protective height | 142mm - 271mm - 400mm - 529mm - 658mm - 787mm - 916mm - 1045mm - 1174mm - 1303mm - 1432mm - 1561mm - 1690 mm |
| Supply voltage | 24 |
| Polarity | PNP |
| Safety Level | Cat. 4, PL e, Type 4 |
| Housing size [mm] | 42 x 48 (standard) |
| Enclosure rating | IP 65 / IP 67 |
| Safety Type | Kit |
| Response time | 5.2 ms - 8.4 ms - 11.6 ms - 14.8 ms - 18 ms - 21.2 ms - 24.4 ms - 27.6 ms - 30.8 ms - 34 ms - 37.2 ms - 40.4 ms - 43.6 ms |
| Resolution | 14 mm (finger) |
| Temperature range | -35...+60°C |
| Sensor Height | 251mm - 380mm - 509mm - 638mm - 737mm - 896mm - 1025mm - 1154mm - 1283mm - 1412mm - 1541 mm - 1670mm - 1799mm |
| Product Range | Light curtain basic standard |
| Beam gap | 8 mm |
-
YBB-14x4-xxxx-G012 EN
