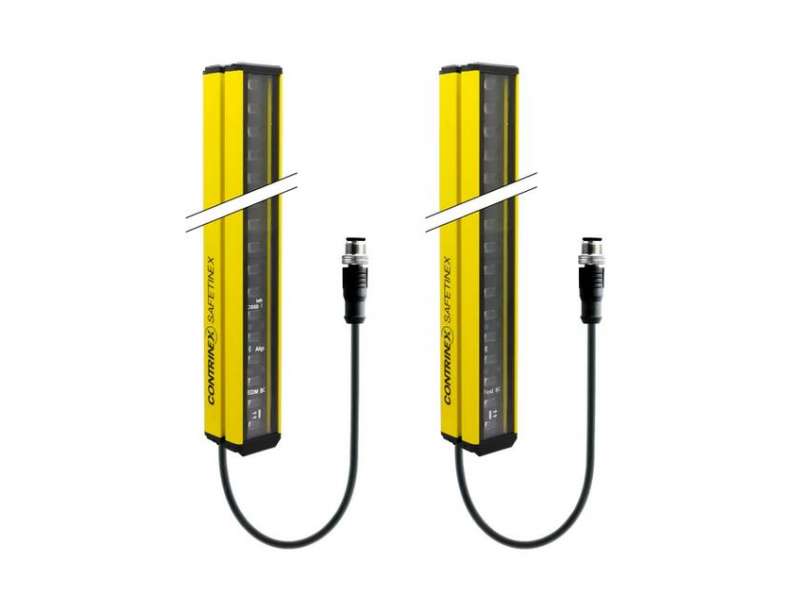

Name: CONTRINEX Light curtain extended slim Type 4 Finger 14 mm (finger) Cat. 4, PL e, Type 4, SIL 3, YBES-14K4-XXXX-P012; 630-400-093/100
Brand: CONTRINEX
SKU: 630-400-093/630-400-100
Availability: OutOfStock

CONTRINEX Light curtain extended slim Type 4 Finger 14 mm (finger) Cat. 4, PL e, Type 4, SIL 3, YBES-14K4-XXXX-P012; 630-400-093/100

Light curtain extended slim Type 4 Finger 14 mm (finger) Cat. 4, PL e, Type 4, SIL 3, YBES-14K4-XXXX-P012; 630-400-093/630-400-100 // Type 4 light curtains from...

Brand: CONTRINEX
Product Code: 630-400-093/630-400-100
Availability: Check availability

Price on request

Light curtain extended slim Type 4 Finger 14 mm (finger) Cat. 4, PL e, Type 4, SIL 3, YBES-14K4-XXXX-P012; 630-400-093/630-400-100
//
Type 4 light curtains from the EXTENDED SLIM range are TÜV, CE and UL certified according to IEC 61496-1/2, IEC 61508-1/2/3 and ISO 13849-1. Protective heights range from 170 to 1,610 mm with integrated EDM*, restart interlock and beam coding. Since EDM includes a relay monitoring function, users can also avoid the cost of wired relays. The slim housing (26 × 26 mm) enables blind-zone free installation and connection is via an integral 5-pin or 8-pin M12 pigtail. This range of light curtains is configured and monitored wirelessly via a Bluetooth® signal and free smartphone app – a world first!

Operating range	0.4...5 m
Sender wavelength	IR 850 nm
Protective height	170 mm - 330 mm - 490 mm - 650 mm - 810 mm - 970 mm - 1130 mm - 1290 mm
Supply voltage	24
Polarity	PNP
Safety Level	Cat. 4, PL e, Type 4, SIL 3
Connection	PUR, 0.3 m, 5 / 8 wire + M12 5-pin
Housing size [mm]	26 x 26 (slim)
Enclosure rating	IP 65
Safety Type	Kit
Response time	9.6 ms - 13.2 ms - 16.8 ms - 20.4 ms - 24 ms - 27.6 ms - 31.2 ms - 34.8 ms
Resolution	14 mm (finger)
Temperature range	0...+55°C
Sensor Height	170 mm - 330 mm - 490 mm - 650 mm - 810 mm - 970 mm - 1130 mm - 1290 mm
Product Range	Light curtain extended slim
Beam gap	10 mm
