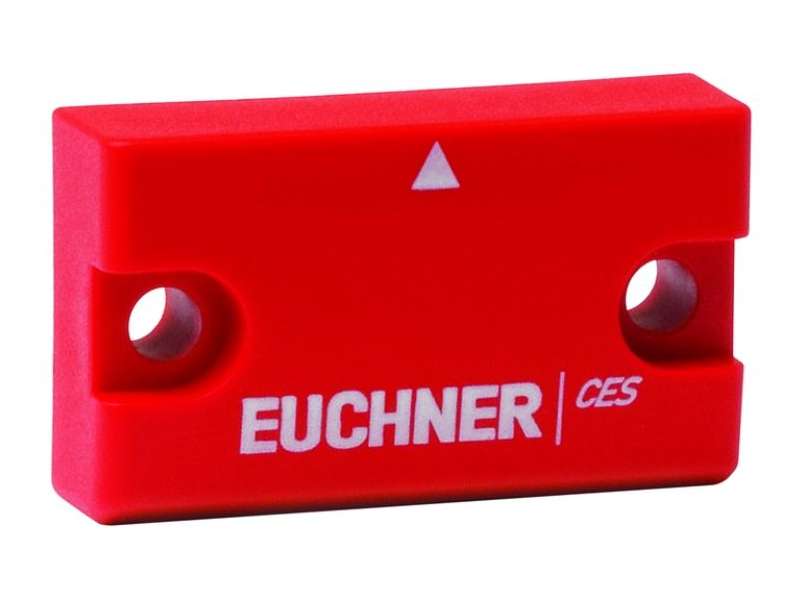

EUCHNER Actuator CES-A-BBN-106600; 106600
EUCHNER Actuator CES-A-BBN-106600; 106600 // Cube-shaped design 42 x 25 mm Mounting compatible with actuator CES-A-BBA/BCA...
Price on request
EUCHNER Actuator CES-A-BBN-106600; 106600
//
//
- Cube-shaped design 42 x 25 mm
- Mounting compatible with actuator CES-A-BBA/BCA
Electrical connection ratings
| Power supply | inductive via read head |
Mechanical values and environment
| Degree of protection | IP67 |
| Material | |
| Housing | reinforced thermoplastic (PBT), fully encapsulated |
| Installation orientation | active face opposite read head |
| Tightening torque | max. 1 Nm |
| Ambient temperature | -25 ... +70 °C |
-
DATA Multilang 02 ast 686747
