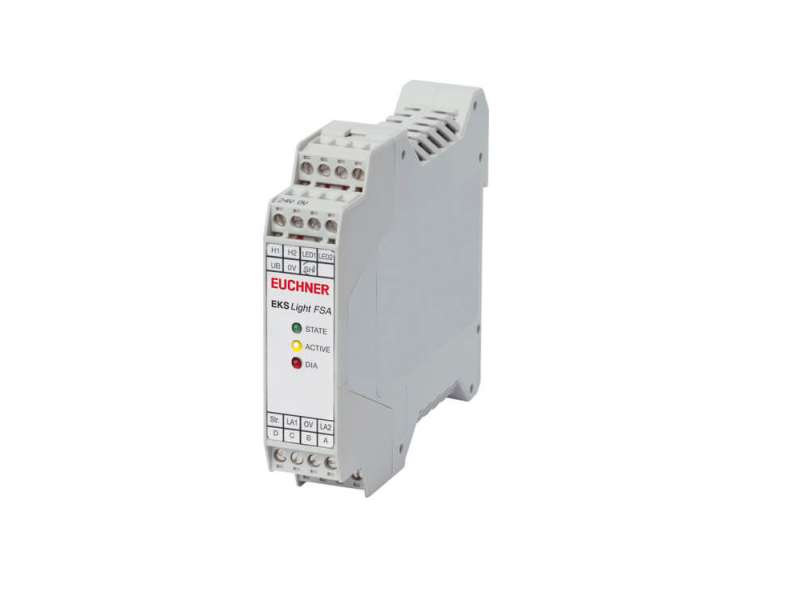

EUCHNER Interface adapter EKS Light modular (supports only operating state 0) ; 113665

EUCHNER Interface adapter EKS Light modular (supports only operating state 0) ; 113665 - slika 1

EUCHNER Interface adapter EKS Light modular (supports only operating state 0) ; 113665

EKS-A-APB-G08 Interface adapter with 4-bit parallel interface Usage in conjunction with Electronic-Key adapter FHM A complete read-only system consists of an Electronic-Key...

Brand: EUCHNER
Product Code: 113665
Availability: Check availability

Price on request

EKS-A-APB-G08

Interface adapter with 4-bit parallel interface
Usage in conjunction with Electronic-Key adapter FHM
A complete read-only system consists of an Electronic-Key adapter FHM and a modular interface adapter
Simple connection
Read-only system
Internal evaluation of the data from the Electronic-Key

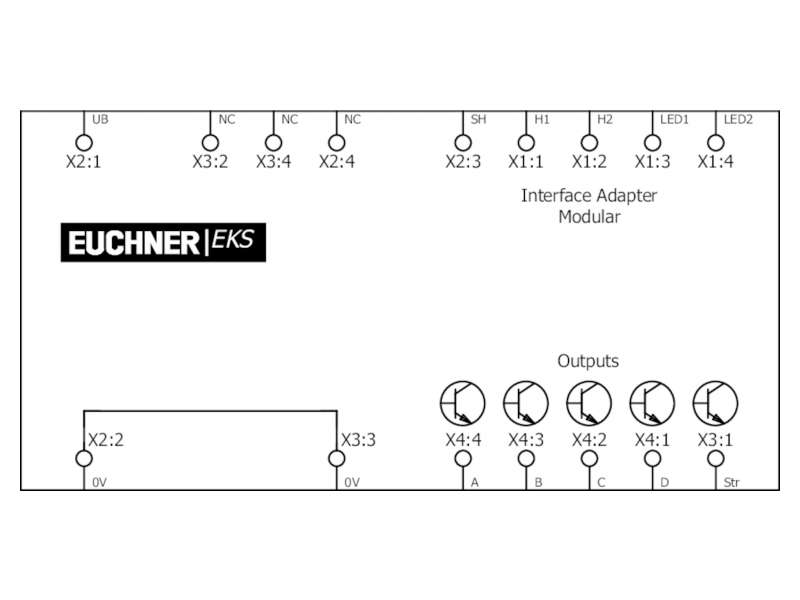

Output of the access level via 4-bit parallel interface
Only operating state 0
Connection to PLC

Approvals

Mechanical values and environment

Housing material
Housing	PA6.6 gray
Ambient temperature	0 ... 55 °C

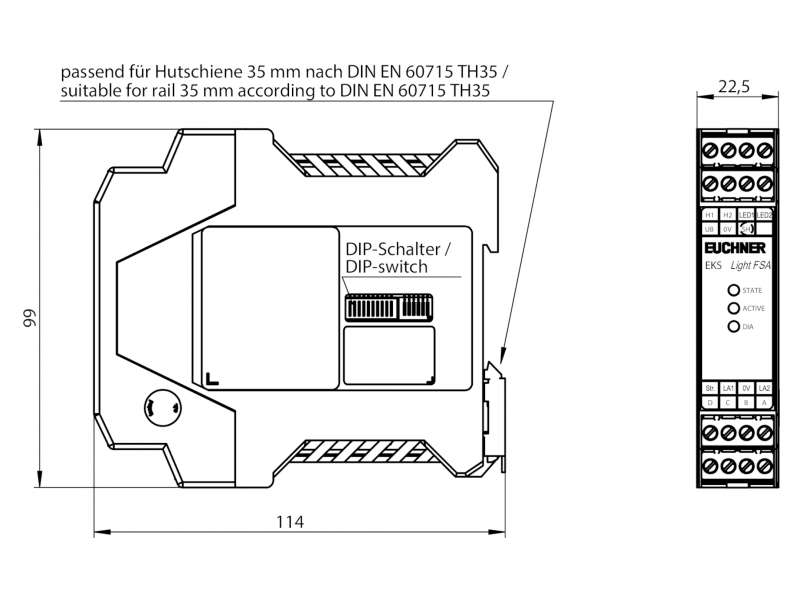

Mounting method	Mounting rail 35mm according to DIN EN 60715 TH35
Number of read heads	max.1
Connection	Plug-in screw terminal

Electrical connection ratings

Connection cross-section	0,14 ... 2,5 mm²
LED display
Green	Operational
Yellow	Key in the operating distance
Red	Fault
	Power supply
Operating voltage DC	9 ... 24 ... 28 V DC
Current consumption	max.70 mA
	Interface and signaling
Switching voltage	U_B-2 ... U_B V
Switching current	10 mA 1 ... 50 mA High signal
