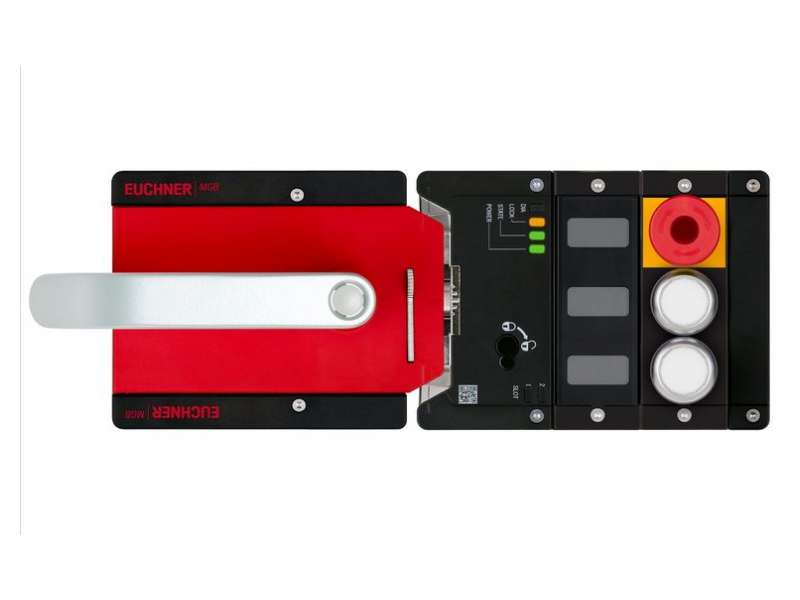

EUCHNER Locking set MGB2-L1H-MLI-U-DA-L-162535; 162535
Locking set MGB2-L1... (2 pushbuttons, emergency stop, closed-circuit current principle, door hinge on left) Guard locking with guard lock monitoring Illuminated...
Locking set MGB2-L1... (2 pushbuttons, emergency stop, closed-circuit current principle, door hinge on left)
- Guard locking with guard lock monitoring
- Illuminated emergency stop according to ISO 13850
- 2 illuminated pushbuttons
- Adjustable door hinge; factory setting: left
- Unicode
- For connection to any bus module MBM
- Remote or direct mounting of bus module MBM
Guard locking type
|
MGB2-L1... |
Guard locking by spring force. Release by applying voltage to the guard locking solenoid. (closed-circuit current principle) |
Flexible connection to any bus module MBM
The locking set can be connected to any bus module MBM, making it the ideal choice for supplementing or expanding existing systems.
Remote mounting
If space is limited, the bus module can be remotely mounted on the locking set.
Approvals
Locking modules MGB2-L1-MLI-U-YB1A1-DA-L-156377 (Order no. 156377)
Mechanical values and environment
| Installation orientation | Door hinge DIN left |
Handle modules MGB2-H-BA1A3-L-156394 (Order no. 156394)
Mechanical values and environment
| Degree of protection | IP65 |
| Material | |
| Housing | Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel |
| Installation orientation | Door hinge DIN left |
| Ambient temperature | -25 ... +55 °C |
Locking modules MGB2-L1-MLI-U-YB1A1-DA-L-156377 (Order no. 156377)
Miscellaneous
| Additional feature | |||||||
| incl. lens set, ID no. 120344 | |||||||
| incl. label holder, ID no. 156732 | |||||||
| Slide-in label | |||||||
|
|||||||
Handle modules MGB2-H-BA1A3-L-156394 (Order no. 156394)
Miscellaneous
| Additional feature | with automatic lockout mechanism |
| Product version number | V1.0.0 |
-
DATA Multilang 08 ast 1945495
-
MAN Operating-Instructions-Interlocking-Lockin… EN 04 09-20 2500234
