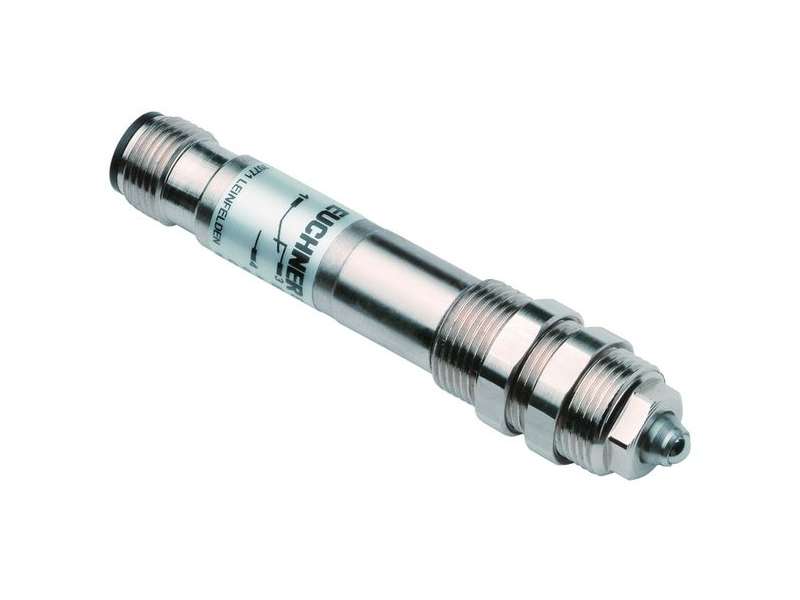

EUCHNER Precision single hole fixing limit switch EGT1/4ASEM4C1802 ; 075644
Precision single hole fixing limit switch EGT1/4 with reed contact Plunger material stainless steel Any installation orientation For mating connector with LED display...
Price on request
Precision single hole fixing limit switch EGT1/4
- with reed contact
- Plunger material stainless steel
- Any installation orientation
- For mating connector with LED display
Switching element
Reed contact, 1 NO contact
Never switch incandescent lamps. Not even for test purposes. Single hole fixing limit switches must not be used as an end stop.Electrical connection ratings
| Rated insulation voltage Ui | 50 V |
| Short circuit protection according to IEC 60269-1 | 0.4A gG |
| Switching current | |
| min. at 24 V | 1 mA |
| Switching voltage | |
| min. | 1 V |
| Utilization category | |
| DC-13 | 0.3A 24V |
| AC-12 | 0.3A 30V |
Mechanical values and environment
| Approach speed | max. 8 m/min |
| Number of NO contacts | 1 |
| Connection | Plug connector M12 |
| Degree of protection | IP67 |
| Design | Thread M14 x 1 |
| Material | |
| Contact | Rhodium |
| Sleeve | Brass, nickel plated |
| Threaded section | stainless steel |
| Actuating element | Ball plunger |
| Actuating force | |
| approx. | 16 N |
| Mechanical life | 30 x 10⁶ |
| Installation orientation | any |
| Switching principle | Reed contact |
| Cable ambient temperature (static) | -25 ... +80 °C |
| Repeat accuracy (absolute) | ±0.01 mm |
Miscellaneous
| C number | |
| C1802 | Special wiring |
