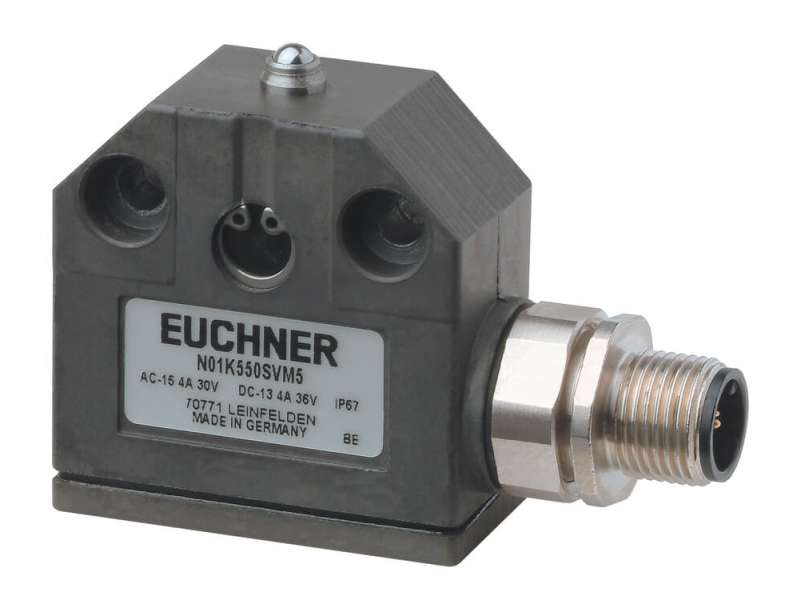

EUCHNER Precision Single Limit Switch N01K550SVM5-M ; 088624
Precision single limit switch N01, ball plunger, plug connector M12 Plunger material stainless steel...
Price on request
Precision single limit switch N01, ball plunger, plug connector M12
- Plunger material stainless steel
Approvals
Mechanical values and environment
| Housing material | Anodized die-cast alloy |
| Weight | |
| Net | 0,07 kg |
| Ambient temperature | -5 ... 80 °C |
| Degree of protection | IP64 |
| Mechanical life | 10 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Changeover contact with snap-action function |
| Installation orientation | Any |

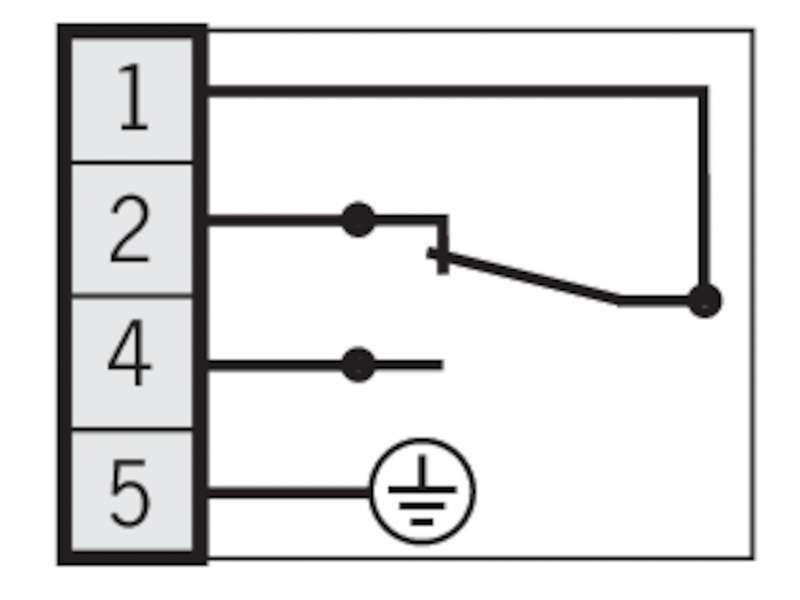

| Number of door position NC contacts | 1 Changeover contact |
| Number of door position NO contacts | 1 |
| Connection | |

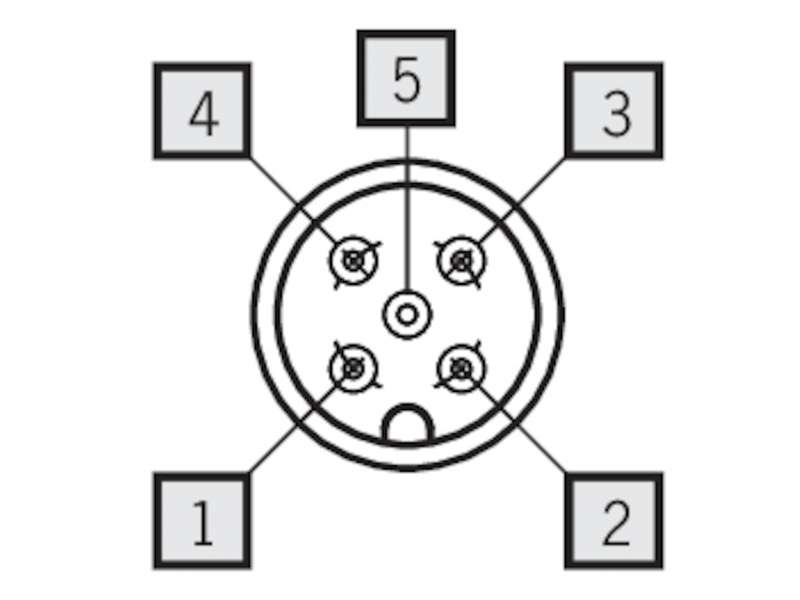

| 1 x | Plug connector M12, adjustable |
| Approach speed | 0,01 ... 8 m/min |
| Actuating element | |
| Steel ball D ball = 4mm | Ball plunger |
| Actuating force | 15 ... 20 N |
Electrical connection ratings
| Thermal rated current Ith | 4 A |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 2A 30V |
| DC-13 | 2A 24V |
| Short circuit protection according to IEC 60269-1 | |
| (Fuse) | 4A gG |
| Rated insulation voltage Ui | 50 V |
| Rated impulse withstand voltage Uimp | 1,5 kV |
| Switching current | |
| Min. at DC 24V | 10 mA |
-
Limit Switches Instructions
