EUCHNER Small Control System MSC-CE ; 121317
Expansion device MSC-CE Decentralized 1-channel communication module Compact housing with width of only 22.5mm Straightforward diagnostics via LED displays Plug-in...
Price on request
Expansion device MSC-CE
- Decentralized 1-channel communication module

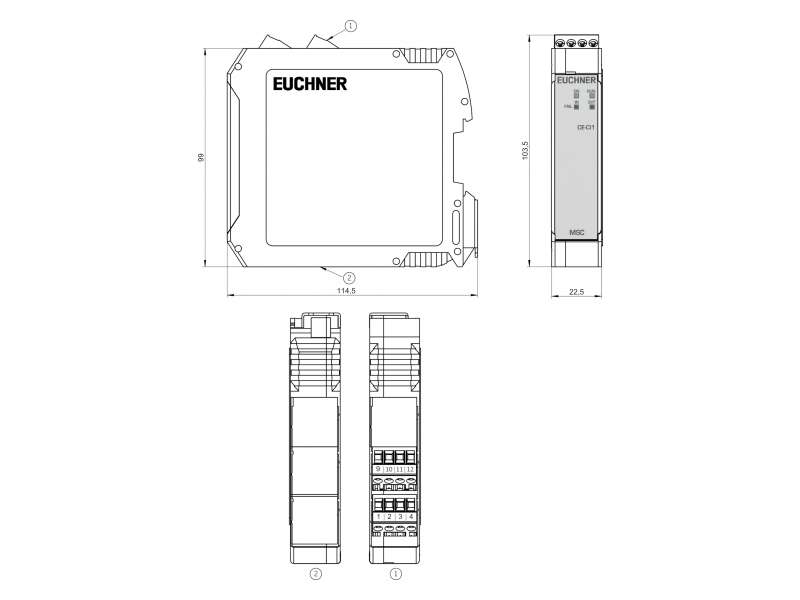

- Compact housing with width of only 22.5mm
- Straightforward diagnostics via LED displays
- Plug-in screw terminals (expansion plug included)
Approvals
Mechanical values and environment
| Material | |
| Housing | Polyamide |
| Ambient temperature | -10 ... +55 °C |
| Atmospheric humidity | 10 ... 95 % rH |
| Degree of protection | IP20 |
| Mounting method | Mounting rail 35mm |
| Connection | Plug-in screw terminal |
Electrical connection ratings
| Operating voltage DC | |
| UB | 24 V DC -20% ... +20% PELV |
| Overvoltage category according to IEC EN 60664-1 | II |
| Degree of contamination according to EN 60664-1 | 2 |
| Connection cross-section | 0,5 ... 2,5 mm² Screw terminal |
| Power consumption | 5 W |
-
Safety Relays ESM Catalogue
