Name: INVERTEK DRIVES Extended I/O Plug In Option Module, for P2, Eco; OPT-2-EXTIO-IN
Brand: INVERTEK DRIVES
SKU: OPT-2-EXTIO-IN
Price: 66.78 RSD
Availability: OutOfStock

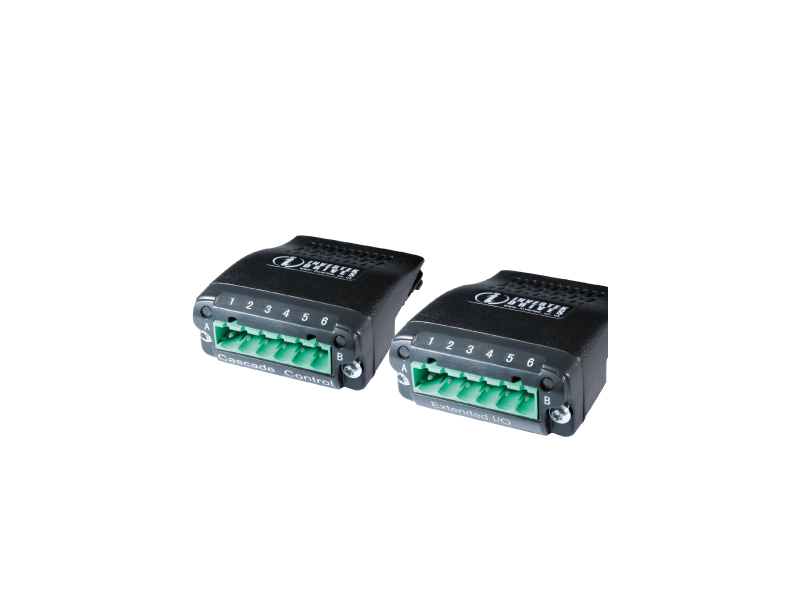

INVERTEK DRIVES Extended I/O Plug In Option Module, for P2, Eco; OPT-2-EXTIO-IN

INVERTEK DRIVES Extended I/O Plug In Option Module, for P2, Eco; OPT-2-EXTIO-IN - slika 1

INVERTEK DRIVES Extended I/O Plug In Option Module, for P2, Eco; OPT-2-EXTIO-IN

OPT-2-EXTIO-IN is an extended input/output module providing an additional three digital inputs and one relay output....

Brand: INVERTEK DRIVES
Product Code: OPT-2-EXTIO-IN
Availability: Check availability

VAT-exclusive price: 55,65 €

VAT-inclusive price: 66,78 €

Qnt:

OPT-2-EXTIO-IN is an extended input/output module providing an additional three digital inputs and one relay output.

Model Number:OPT-2-EXTIO-IN
Compatibility:Optidrive P2/ HVAC (ODP-2/ ODV-2)
Digital Input x 3:8-30V DC Input
Digital Input Response Time:< 8ms
Max Relay switching voltage:250V AC / 30V DC
Max Relay switching current:6A (250V AC) / 5A (30V DC)
Environnemental: -10ºC ... +50ºC
Conformity:IP20,UL94V-0
Terminal Torque:0.5Nm (4.5 Ib-in)
