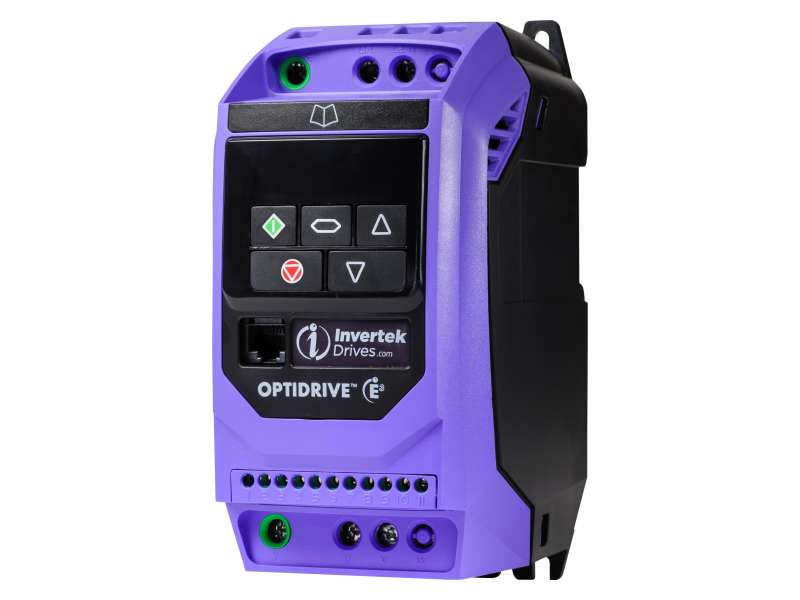

INVERTEK DRIVES Optidrive E3, 0.75kW IP20 ; ODE-3-140022-3F12
Invertek Optidrive E3, ODE-3-140022-3F12 , 0.75kW, 2.2A output, 400V three phase input, 400V three phase output, IP20 with internal EMC filter. Panel / cabinet mount....
VAT-exclusive price: 222,60 € |
VAT-inclusive price: 267,12 € |
Invertek Optidrive E3, ODE-3-140022-3F12, 0.75kW, 2.2A output, 400V three phase input, 400V three phase output, IP20 with internal EMC filter. Panel / cabinet mount.
Robust and easy to use. 14 parameters for basic setup.
Sensorless vector control
PI control
Power kW 0.75kW
Power HP 1HP
Input Voltage 415V
Output Voltage 0 to input
Input Phases 3
Output Phases 3
Output Current 2.2Amps
Input Current 3.5Amps
Encl Rating IP20
Width 83mm
Height 173mm
Depth 123mm
Frame Size 1
Overload 150%
Duty Heavy
Dynamic Braking No
Weight 1kg
Control Type Simple vector or V/F
Input Freq 48-62Hz
Output Freq 0-550Hz
Max Temp 50 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals CE, UL, C-Tick, ROHS
-
GB Optidrive E3 User Guide
