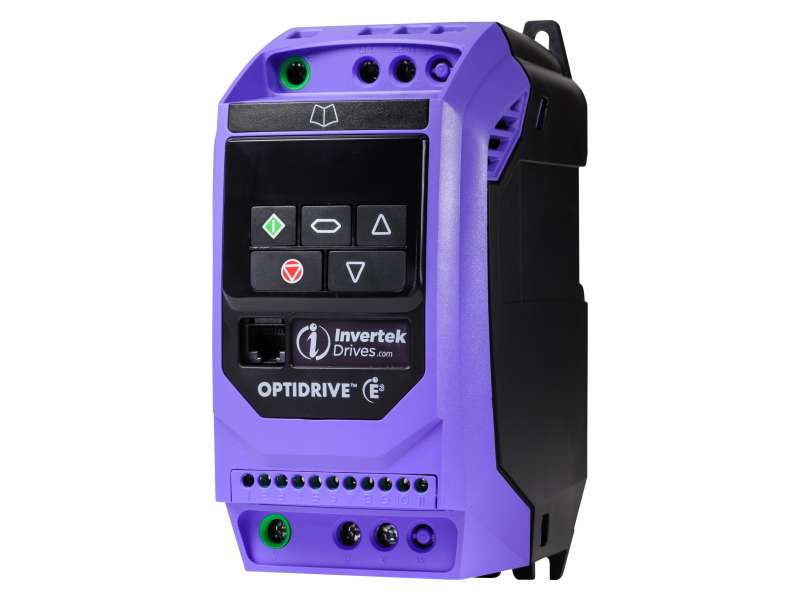

INVERTEK DRIVES Optidrive E3, 1.5kW ,IP20 ; ODE-3-140041-3F12
Invertek Optidrive E3, ODE-3-140041-3F12 , 1.5 kW, 4.1A output, 400V three phase input, 400V three phase output, IP20 with internal EMC filter. Panel / cabinet mount....
VAT-exclusive price: 254,10 € |
VAT-inclusive price: 304,92 € |
Invertek Optidrive E3, ODE-3-140041-3F12, 1.5 kW, 4.1A output, 400V three phase input, 400V three phase output, IP20 with internal EMC filter. Panel / cabinet mount.
Robust and easy to use. 14 parameters for basic setup.
Sensorless vector controlPI control
Power kW 1.5kW
Power HP 2HP
Input Voltage 380-480V
Output Voltage 0 to 400V
Input Phases 3
Output Phases 3
Output Current 4.1Amps
Input Current 5.6Amps
Encl Rating IP20
Width 83mm
Height 173mm
Depth 123mm
Frame Size 1
Overload 150%
Duty Heavy
Dynamic Braking No
Weight 1.0000
Control Type Simple vector or V/f mode
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 50 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, ROHS
-
GB Optidrive E3 User Guide
