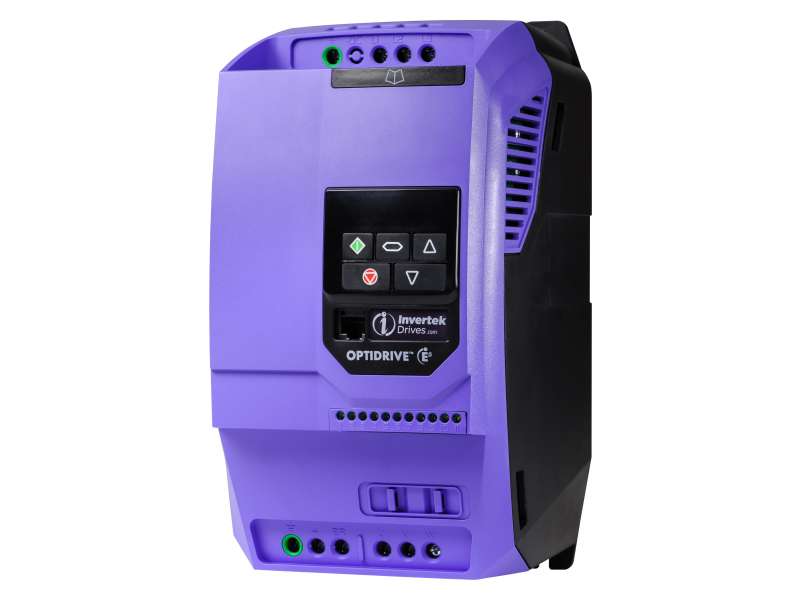

INVERTEK DRIVES Optidrive E3 , Monofazni 4kW IP20 ; ODE-3-320153-1F42
Invertek Optidrive E3, ODE-3-540720-3F42 , 4kW, 72A output, 200-240V single phase input, 3x220V three phase output, IP20 with internal EMC filter and internal braking...
Price on request
Invertek Optidrive E3, ODE-3-540720-3F42, 4kW, 72A output, 200-240V single phase input, 3x220V three phase output, IP20 with internal EMC filter and internal braking transistor. Panel / cabinet mount. Versatile
Robust and easy to use. 14 parameters for basic setup.Sensorless Vector Control or adjustable V/f control
PI Contro
| Power (kW) | 4 |
| Power (HP) | / |
| Input Voltage | 200-240 V |
| Output Voltage | 0-input Voltage |
| Input Phases | 1 |
| Output Current | 15.3 A |
| Input Current | 29.2 A |
| Enclosure rating | IP20 |
| Width | 261mm |
| Height | 131mm |
| Depth | 175mm |
| Frame Size | 3 |
| Overload | 150% 60 seconds |
| Duty | Heavy |
| Dynamic Braking | Yes |
| Weight | 3.2 |
| Control Type | Open loop vector control or V/f |
| Input Frequency | 48-62Hz |
| Output Frequency | 0-500Hz |
| Max Temperature | 50 ͦC |
| Digital Inputs | 4 |
| Digital Outputs | 1 |
| Analogue Inputs/Ps | 2 |
| Analogue Outputs/Ps | 1 |
| Output relay(s) | 1 |
| Serial Comms | Modbus, CANopen |
| Approvals | UL. cUL, C- Tick, Gost R, ROHS |
-
GB Optidrive E3 Quick Start NEW
-
ODE-3-320153-1F42
