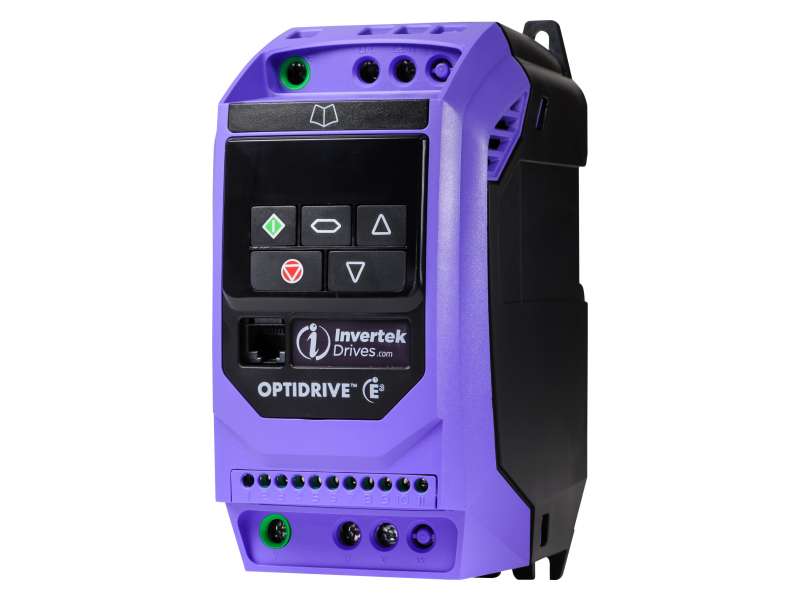

INVERTEK DRIVES Optidrive E3 Single Phase Input, 0.37kW , IP20 ; ODE-3-120023-1F12
Invertek Optidrive E3, ODE-3-120023-1F12, 0.37kW, 2.3A output, 230V single phase input, 230V three phase output, IP20 with internal EMC filter. Panel / cabinet mount....
VAT-exclusive price: 136,50 € |
VAT-inclusive price: 163,80 € |
Invertek Optidrive E3, ODE-3-120023-1F12, 0.37kW, 2.3A output, 230V single phase input, 230V three phase output, IP20 with internal EMC filter. Panel / cabinet mount.
Robust and easy to use. 14 parameters for basic setup.
Sensorless Vector Control
PI control
Power kW 0.37kW
Power HP 0.5HP
Input Voltage 240V
Output Voltage 0 to 240V
Input Phases 1
Output Phases 3
Output Current 2.3Amps
Input Current 3.7Amps
Encl Rating IP20
Width 83mm
Height 173mm
Depth 123mm
Frame Size 1
Overload 150%
Duty Heavy
Dynamic Braking No
Weight 1.0000
Control Type Simple vector or V/f mode
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 50 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, ROHS
-
GB Optidrive E3 User Guide
