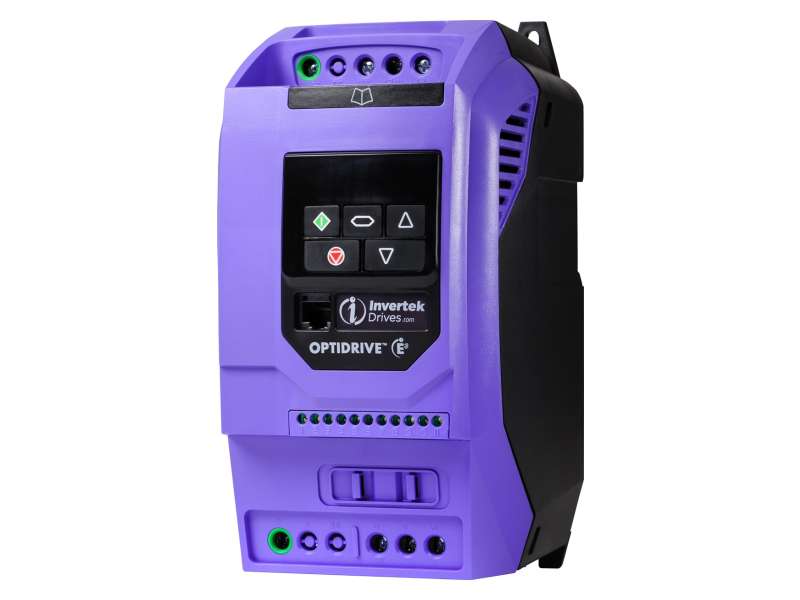

INVERTEK DRIVES Optidrive E3, Single phase input, 1.5kW Frame size 2 ; ODE-3-220070-1F42
Invertek Optidrive E3, ODE-3-140041-3F12 , 1.5 kW, 7 A output, 200-240V three phase input,3x 200-240 V three phase output, IP20 with internal EMC filter. Panel /...
VAT-exclusive price: 241,50 € |
VAT-inclusive price: 289,80 € |
Invertek Optidrive E3, ODE-3-140041-3F12, 1.5 kW, 7 A output, 200-240V three phase input,3x 200-240 V three phase output, IP20 with internal EMC filter. Panel / cabinet mount.
Robust and easy to use. 14 parameters for basic setup.
Sensorless vector controlPI control
Power kW 1.5kW
Power HP 2HP
Input Voltage 200-240 V
Output Voltage 0 to UinV
Input Phases 1
Output Phases 3
Output Current 7Amps
Input Current 12.9Amps
Encl Rating IP20
Width 110mm
Height 221mm
Depth 150mm
Frame Size 1
Overload 150%
Duty Heavy
Dynamic Braking Yes
Weight 1.70000
Control Type Simple vector or V/f mode
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 50 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, ROHS
-
GB Optidrive E3 User Guide
