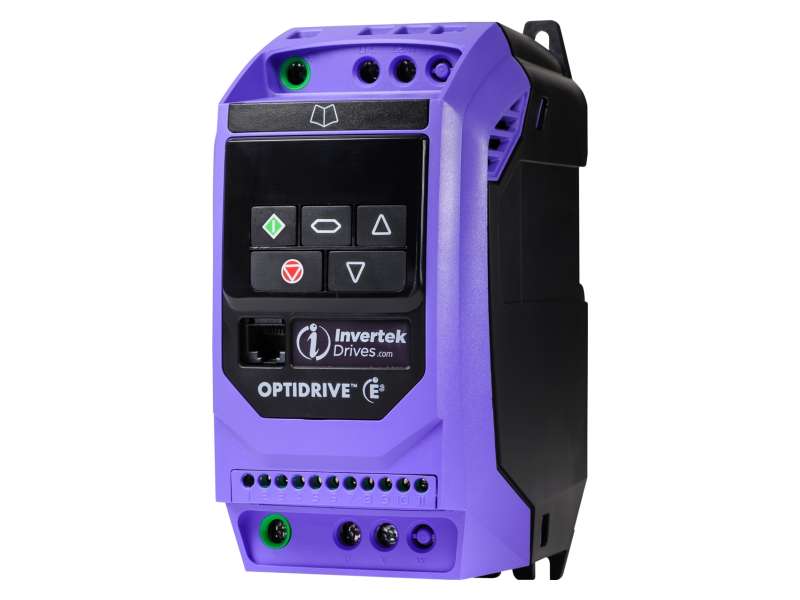

INVERTEK DRIVES Optidrive E3 snage 0.37kW , za monofazne motore, IP20 stepen zaštite ; ODE-3-120043-1F12-01
Frequency inverter for 0.37 kW single-phase motors, manufactured by Invertek Drives, part number ODE-3-120043-1F12-01. This frequency regulator is used in small...
VAT-exclusive price: 201,60 € |
VAT-inclusive price: 241,92 € |
The manufacturer provides a two-year warranty.
Power kW 0.37
Power HP 0.5
Input Voltage 240V
Output Voltage 0 to input V
Input Phases 1
Output Phases 1
Output Current 4.3Amps
Input Current 6.0Amps
Encl Rating IP20
Width 83mm
Height 173mm
Depth 123mm
Frame Size 1
Overload 150%
Duty Light
Dynamic Braking No
Weight 1.000000
Control Type V/f
Input Freq 48-62Hz
Output Freq 0-120Hz
Max Temp 50 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, RoHS
-
GB Optidrive E3 Quick Start NEW
