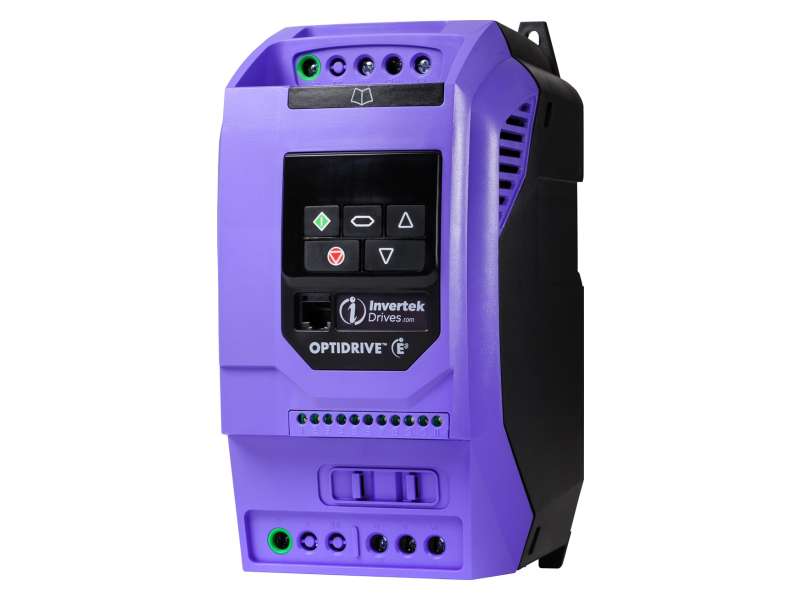

INVERTEK DRIVES Optidrive E3 snage 1.1 kW , za monofazne motore, IP20 stepen zaštite ; ODE-3-220105-1F42-01
Frequency inverter for 1.1 kW single-phase motors, manufactured by Invertek Drives, part number ODE-3-220105-1F42-01. This frequency regulator is used in small industrial...
VAT-exclusive price: 287,70 € |
VAT-inclusive price: 345,24 € |
Frequency inverter for 1.1 kW single-phase motors, manufactured by Invertek Drives, part number ODE-3-220105-1F42-01. This frequency regulator is used in small industrial or machine tools or in smaller pumps and fans with a single-phase motor. The nominal output current is 10.5 A and the output voltage is 200-240 V AC. The housing is compact, made in IP20 degree of protection and this frequency regulator is designed for mounting on a DIN rail. Classic V / f control in the frequency range 0-120 Hz, built-in filter against electromagnetic interference (EMC) is available. Clear LED screen, quick and easy parameter setting and commissioning. Reliable and safe in operation, it has a large number of built-in protections and possible alarms.
The manufacturer provides a two-year warranty.
The manufacturer provides a two-year warranty.
Power kW 1.1
Power HP 1.5
Input Voltage 240V
Output Voltage 0 to input
Input Phases 1
Output Phases 1
Output Current 10.5Amps
Input Current 14.0Amps
Encl Rating IP20
Width 110mm
Height 221mm
Depth 150mm
Frame Size 2
Overload 150%
Duty Light
Dynamic Braking Yes
Weight 1.700000
Control Type V/f
Input Freq 48-62Hz
Output Freq 0-120Hz
Max Temp 50 deg C
Digital Inputs 4
Digital Outputs 1
Analogue I/Ps 2
Analogue O/Ps 1
Output relay(s) 1
Serial Comms Modbus RTU & CANOpen
Approvals UL, cUL, C- Tick, RoHS
-
GB Optidrive E3 Quick Start NEW
