Name: INVERTEK DRIVES Optidrive Eco, 132kW, IP55; ODV-3-742400-3F1N-MN
Brand: INVERTEK DRIVES
SKU: ODV-3-742400-3F1N-MN
Price: 8344.80 RSD
Availability: OutOfStock

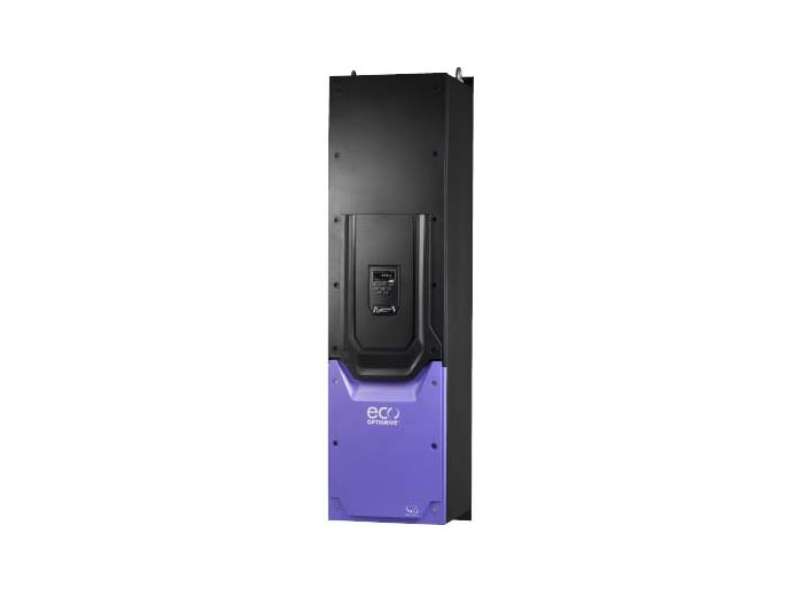

INVERTEK DRIVES Optidrive Eco, 132kW, IP55; ODV-3-742400-3F1N-MN

Invertek Optidrive Eco, ODV-3-742400-3F1N-MN , 400V 3 phase input, 400V 3 phase output, 132kW, 240A output current IP55 inverter. Dedicated centrifugal Fan &...

Brand: INVERTEK DRIVES
Product Code: ODV-3-742400-3F1N-MN
Availability: Check availability

VAT-exclusive price: 6.954,00 €

VAT-inclusive price: 8.344,80 €

Qnt:

Invertek Optidrive Eco,ODV-3-742400-3F1N-MN, 400V 3 phase input, 400V 3 phase output, 132kW, 240A output current
IP55 inverter.
Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet

Power (kW)	132
Power (HP)	177
Input Voltage	380-480V
Output Voltage	0-input Voltage
Input Phases	3
Output Current	240A
Input Current	244.5A
Enclosure rating	IP55
Width	330mm
Height	1280mm
Depth	360mm
Frame Size	7
Overload	110%
Duty	Normal
Dynamic Braking	No
Weight	89kg
Control Type	ECO Vector
Input Frequency	48-62Hz
Output Frequency	0-500Hz
Max Temperature	40 ͦC
Digital Inputs	5
Digital Outputs	2
Analogue Inputs/Ps	2
Analogue Outputs/Ps	2
Output relay(s)	2
Serial Comms	Modbus, Bacnet
Approvals	UL. cUL, C- Tick, Gost R, ROHS
