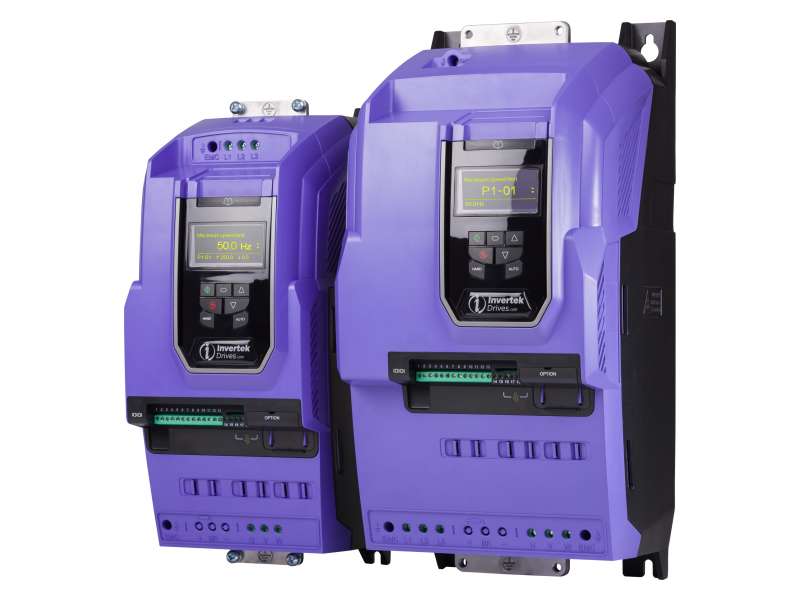

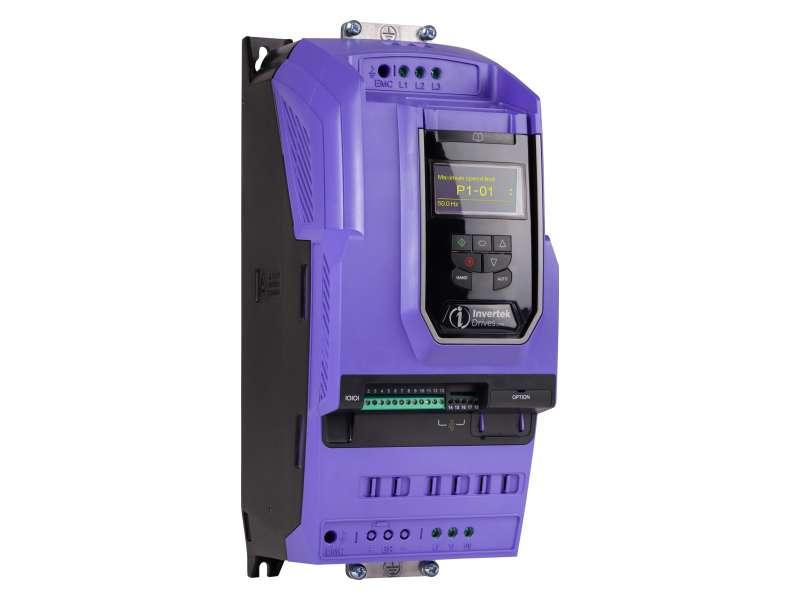

Name: INVERTEK DRIVES Optidrive Eco, 15kW, IP20 ; ODV-3-440300-3F12-MN
Brand: INVERTEK DRIVES
SKU: ODV-3-440300-3F12-MN
Price: 1549.80 RSD
Availability: OutOfStock

INVERTEK DRIVES Optidrive Eco, 15kW, IP20 ; ODV-3-440300-3F12-MN

INVERTEK DRIVES Optidrive Eco, 15kW, IP20 ; ODV-3-440300-3F12-MN

Invertek Optidrive Eco, ODV-3-440300-3F12-MN , 400V 3 phase input, 400V 3 phase output, 15kW, 30A output current IP20 inverter. Dedicated centrifugal Fan & Pump...

Brand: INVERTEK DRIVES
Product Code: ODV-3-440300-3F12-MN
Availability: Check availability

VAT-exclusive price: 1.291,50 €

VAT-inclusive price: 1.549,80 €

Qnt:

Invertek Optidrive Eco,ODV-3-440300-3F12-MN, 400V 3 phase input, 400V 3 phase output, 15kW, 30A output current
IP20 inverter.

Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet

Power (kW)	15
Power (HP)	20
Input Voltage	380-480V
Output Voltage	0-input Voltage
Input Phases	3
Output Current	30A
Input Current	27A
Enclosure rating	IP20
Width	160mm
Height	418mm
Depth	240mm
Frame Size	4
Overload	110%
Duty	Normal
Dynamic Braking	No
Weight	8.1kg
Control Type	ECO Vector
Input Frequency	48-62Hz
Output Frequency	0-500Hz
Max Temperature	40 ͦC
Digital Inputs	5
Digital Outputs	2
Analogue Inputs/Ps	2
Analogue Outputs/Ps	2
Output relay(s)	2
Serial Comms	Modbus, Bacnet
Approvals	UL. cUL, C- Tick, Gost R, ROHS
