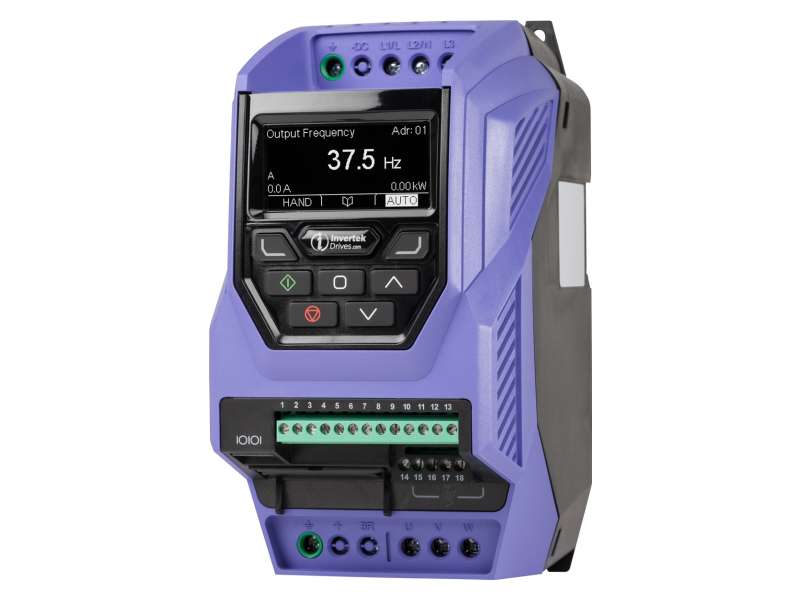

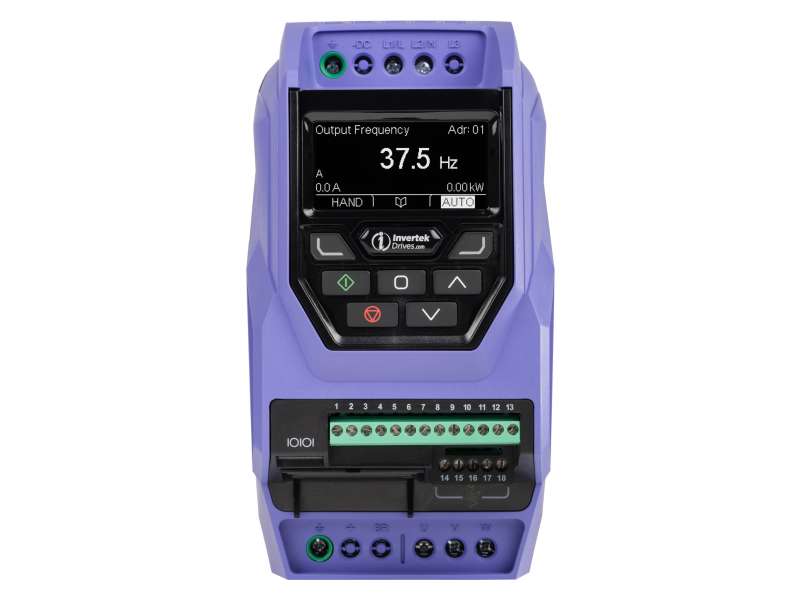

Name: INVERTEK DRIVES Optidrive Eco, 2.2kW, IP20 ; ODV-3-240058-3F12-MN
Brand: INVERTEK DRIVES
SKU: ODV-3-240058-3F12-MN
Price: 496.44 RSD
Availability: InStock

INVERTEK DRIVES Optidrive Eco, 2.2kW, IP20 ; ODV-3-240058-3F12-MN

INVERTEK DRIVES Optidrive Eco, 2.2kW, IP20 ; ODV-3-240058-3F12-MN

Invertek Optidrive Eco, ODV-3-240058-3F12-MN 400V 3 phase input, 400V 3 phase output, 2.2 kW, 4.1 A output current IP20 inverter. DIN rail mountable Dedicated centrifugal...

Brand: INVERTEK DRIVES
Product Code: ODV-3-240058-3F12-MN
Availability: In stock

VAT-exclusive price: 413,70 €

VAT-inclusive price: 496,44 €

Qnt:

Invertek Optidrive Eco, ODV-3-240058-3F12-MN 400V 3 phase input, 400V 3 phase output, 2.2 kW, 4.1 A output current
IP20 inverter.

DIN rail mountable
Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet

Power (kW)	2.2
Power (HP)	3
Input Voltage	380-480V
Output Voltage	0-input Voltage
Input Phases	3
Output Current	5.8A
Input Current	5.2A
Enclosure rating	IP20
Width	110mm
Height	221mm
Depth	185mm
Frame Size	2
Overload	110%
Duty	Normal
Dynamic Braking	No
Weight	1.8
Control Type	ECO Vector
Input Frequency	48-62Hz
Output Frequency	0-500Hz
Max Temperature	40 ͦC
Digital Inputs	5
Digital Outputs	2
Analogue Inputs/Ps	2
Analogue Outputs/Ps	2
Output relay(s)	2
Serial Comms	Modbus, Bacnet
Approvals	UL. cUL, C- Tick, Gost R, ROHS
