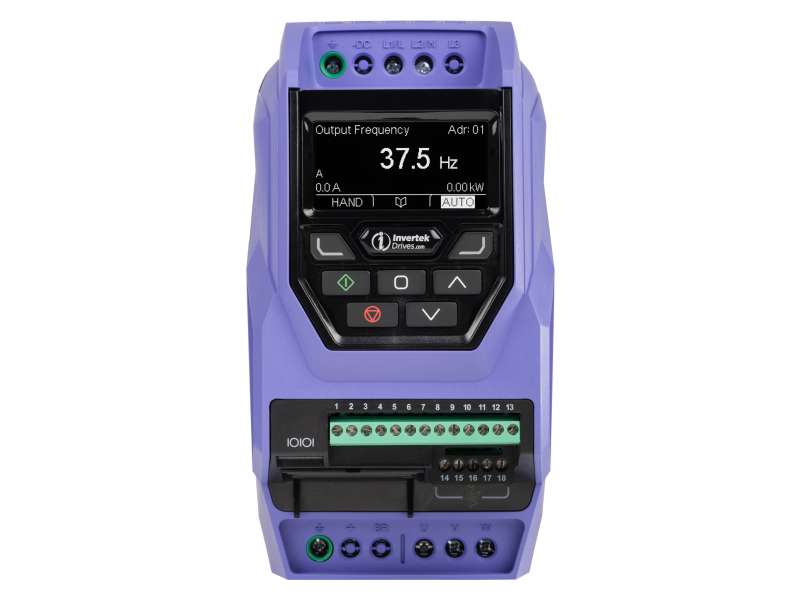

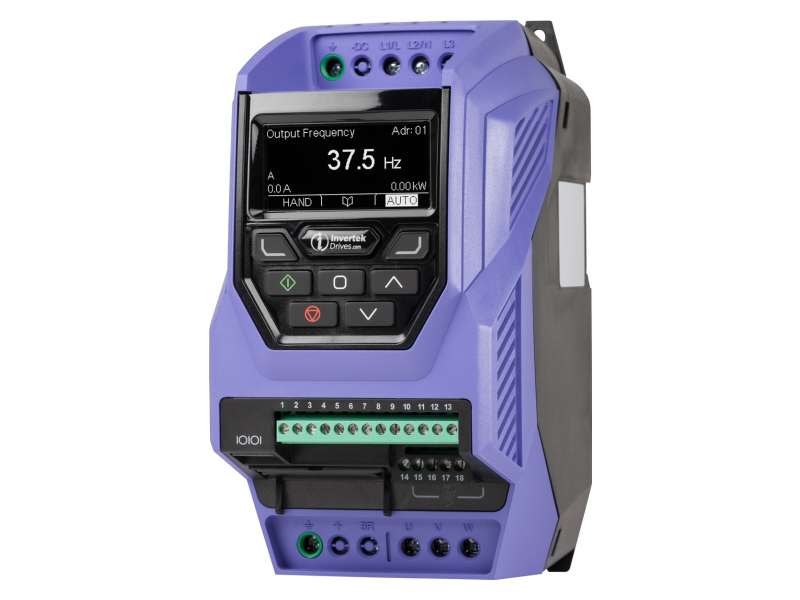

Name: INVERTEK DRIVES Optidrive Eco, Single Phase Input, 2.2kW ; ODV-3-220105-1F12-MN
Brand: INVERTEK DRIVES
SKU: ODV-3-220105-1F12-MN
Price: 486.36 RSD
Availability: OutOfStock

INVERTEK DRIVES Optidrive Eco, Single Phase Input, 2.2kW ; ODV-3-220105-1F12-MN

INVERTEK DRIVES Optidrive Eco, Single Phase Input, 2.2kW ; ODV-3-220105-1F12-MN

Invertek Optidrive Eco, ODV-3-220043-1F12-MN , 200-240V Single Phase Input, 3 phase output, 2.2kW, 10.5A output current IP20 inverter. DIN Rail Mountable LED Display...

Brand: INVERTEK DRIVES
Product Code: ODV-3-220105-1F12-MN
Availability: Check availability

VAT-exclusive price: 405,30 €

VAT-inclusive price: 486,36 €

Qnt:

Invertek Optidrive Eco,ODV-3-220043-1F12-MN, 200-240V Single Phase Input, 3 phase output, 2.2kW, 10.5A output current
IP20 inverter.
DIN Rail Mountable
LED Display
Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet

Power (kW)	2.2
Power (HP)	3
Input Voltage	200-240V
Output Voltage	0-input Voltage
Input Phases	1
Output Current	10.5A
Input Current	19.5A
Enclosure rating	IP20
Width	110mm
Height	221mm
Depth	185mm
Frame Size	2
Overload	110%
Duty	Normal
Dynamic Braking	No
Weight	1.8kg
Control Type	ECO Vector
Input Frequency	48-62Hz
Output Frequency	0-500Hz
Max Temperature	40 ͦC
Digital Inputs	5
Digital Outputs	2
Analogue Inputs/Ps	2
Analogue Outputs/Ps	2
Output relay(s)	2
Serial Comms	Modbus, Bacnet
Approvals	UL. cUL, C- Tick, Gost R, ROHS
