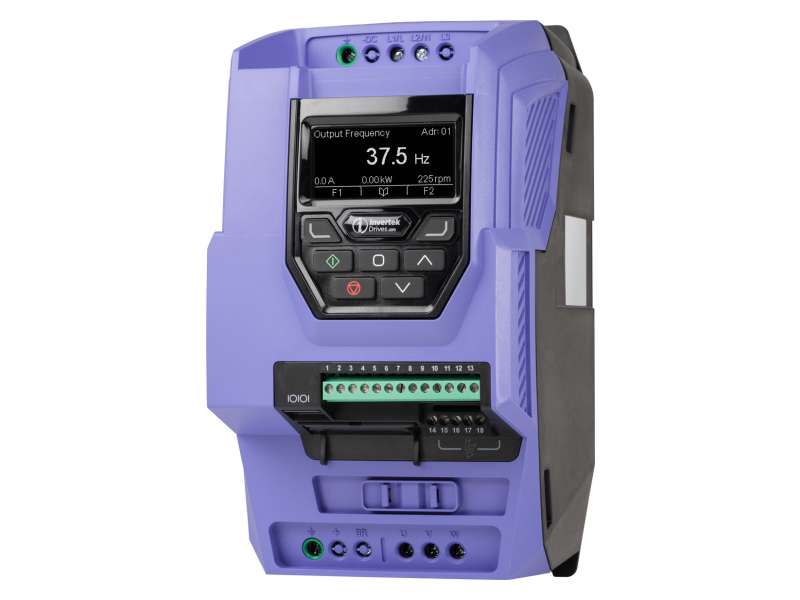

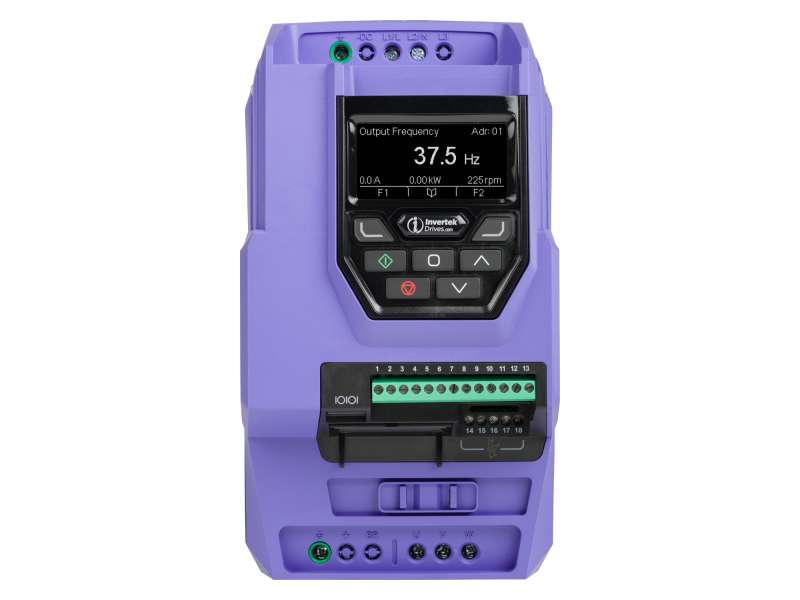

INVERTEK DRIVES Optidrive P2, 11kW, IP20 ;ODP-2-34110-3KF42-MN
Invertek Optidrive P2, ODP-2-34110-3KF42-MN , 400V 3 phase input, 400V 3 phase output, 11kW, 24 A output current IP20 inverter. DIN rail mountable High performance...
VAT-exclusive price: 903,00 € |
VAT-inclusive price: 1.083,60 € |
Invertek Optidrive P2, ODP-2-34110-3KF42-MN, 400V 3 phase input, 400V 3 phase output, 11kW, 24 A output current
IP20 inverter.
DIN rail mountable
High performance open loop vector or V/f control.PID control
PLC functions
Internal EMC filter and brake transistor.
Communication options : Profibus, Profinet,Ethernet, DeviceNet
Optional Encoder Interface
Power kW 11kW
Power HP 15HP
Input Voltage 380-480V
Output Voltage 0 to input V
Input Phases 3
Output Phases 3
Output Current 24 Amps
Input Current 28.9 Amps
Encl Rating IP20
Width 131mm
Height 261mm
Depth 205mm
Frame Size 3
Overload 200%
Duty Heavy
Dynamic Braking Yes
Weight 3.5000
Control Type V/f and Open loop vector
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 50 deg C
Digital Inputs 5
Digital Outputs 2
Analogue I/Ps 2
Analogue O/Ps 2
Output relay(s) 2 status relays
Serial Comms Modbus, CANopen
Approvals UL. cUL, C- Tick, Gost R, ROHS
-
GB Optidrive P2 User Guide NEW
