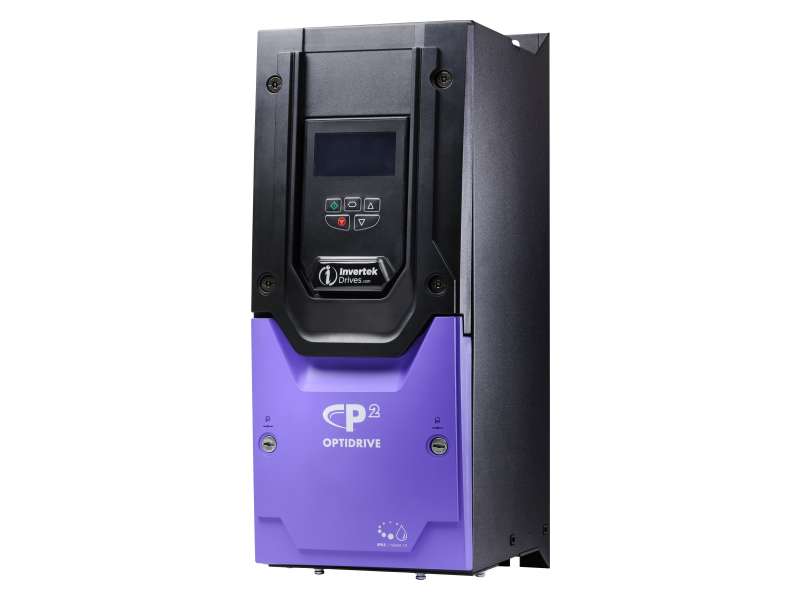

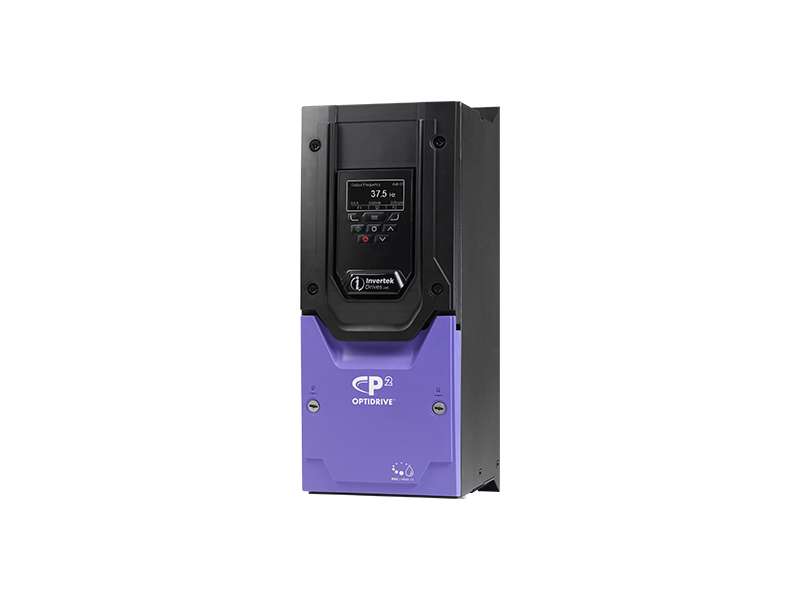

INVERTEK DRIVES Optidrive P2 ,11kW, IP55 ; ODP-2-44110-3KF4N-MN
Invertek Optidrive P2, IP55 Variable Frequency Drive with EMC Filter and TFT Display, 11 kW, 24 A, 380-480 V, 3PH; ODP-2-44110-3KF4N-MN TFT display. High performance...
VAT-exclusive price: 1.239,00 € |
VAT-inclusive price: 1.486,80 € |
TFT display.
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Safe Torque Off
IP55 is protection against low pressure jets of water and harmful deposits of dust.
|
Power (kW) |
11 |
|
Power (HP) |
15 |
|
Input Voltage |
380-480V |
|
Output Voltage |
0-input Voltage |
|
Input Phases |
3 |
|
Output Current |
24A |
|
Input Current |
27A |
|
Enclosure rating |
IP55 |
|
Width |
171mm |
|
Height |
450mm |
|
Depth |
252mm |
|
Frame Size |
4 |
|
Overload |
200% |
|
Duty |
Normal |
|
Dynamic Braking |
Yes |
|
Weight |
11.5 |
|
Control Type |
Open or closed loop vector or V/f |
|
Input Frequency |
48-62Hz |
|
Output Frequency |
0-500Hz |
|
Max Temperature |
40 ͦC |
|
Digital Inputs |
5 |
|
Digital Outputs |
2 |
|
Analogue Inputs/Ps |
2 |
|
Analogue Outputs/Ps |
2 |
|
Output relay(s) |
2 |
|
Serial Comms |
Modbus, CANopen |
|
Approvals |
UL. cUL, C- Tick, Gost R, ROHS |
-
GB Optidrive P2 User Guide NEW
