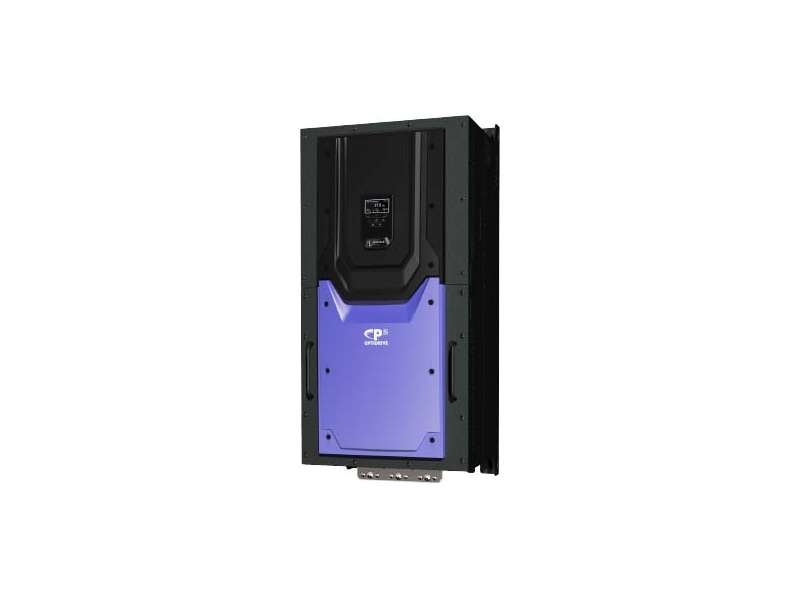

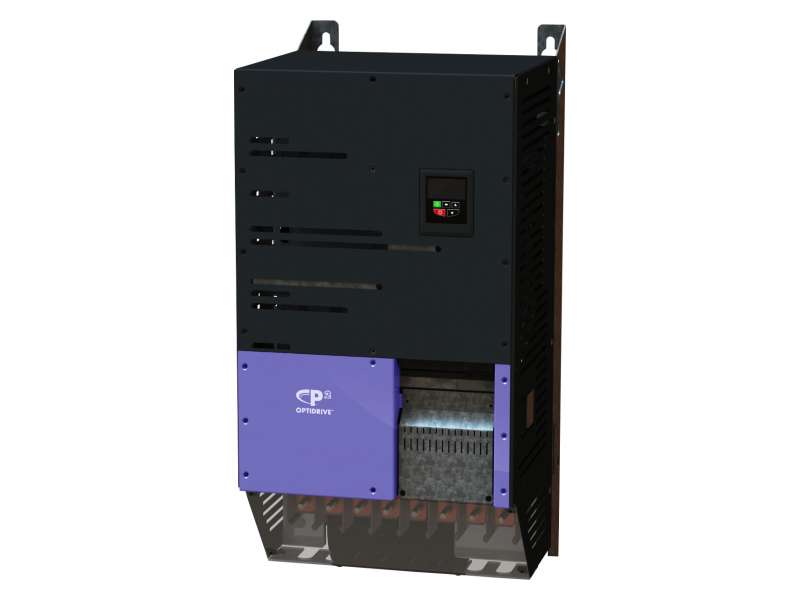

INVERTEK DRIVES Optidrive P2 , 200kW, IP20 ; ODP-2-84200-3KF42-MN
Invertek Optidrive P2, , ODP-2-84200-3KF42-TN, 400V 3 phase input, 400V 3 phase output, 200kW, 370A, IP20 TFT display. High performance open loop vector or V/f control....
VAT-exclusive price: 12.495,00 € |
VAT-inclusive price: 14.994,00 € |
Invertek Optidrive P2, , ODP-2-84200-3KF42-TN, 400V 3 phase input, 400V 3 phase output, 200kW, 370A, IP20
TFT display.
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Safe Torque Off
TFT display.
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Safe Torque Off
| Power (kW) | 200 |
| Power (HP) | 250 |
| Input Voltage | 380-480V |
| Output Voltage | 0-input Voltage |
| Input Phases | 3 |
| Output Current | 370A |
| Input Current | 370A |
| Enclosure rating | IP20 |
| Width | 482mm |
| Height | 480mm |
| Depth | 995mm |
| Frame Size | 8 |
| Overload | 200% |
| Duty | Heavy |
| Dynamic Braking | Yes |
| Weight | 200kg |
| Control Type | Open or closed loop vector or V/f |
| Input Frequency | 48-62Hz |
| Output Frequency | 0-500Hz |
| Max Temperature | 50 ͦC |
| Digital Inputs | 5 |
| Digital Outputs | 2 |
| Analogue Inputs/Ps | 2 |
| Analogue Outputs/Ps | 2 |
| Output relay(s) | 2 |
| Serial Comms | Modbus, CANopen |
| Approvals | UL. cUL, C- Tick, Gost R, ROH |
-
GB Optidrive P2 User Guide NEW
