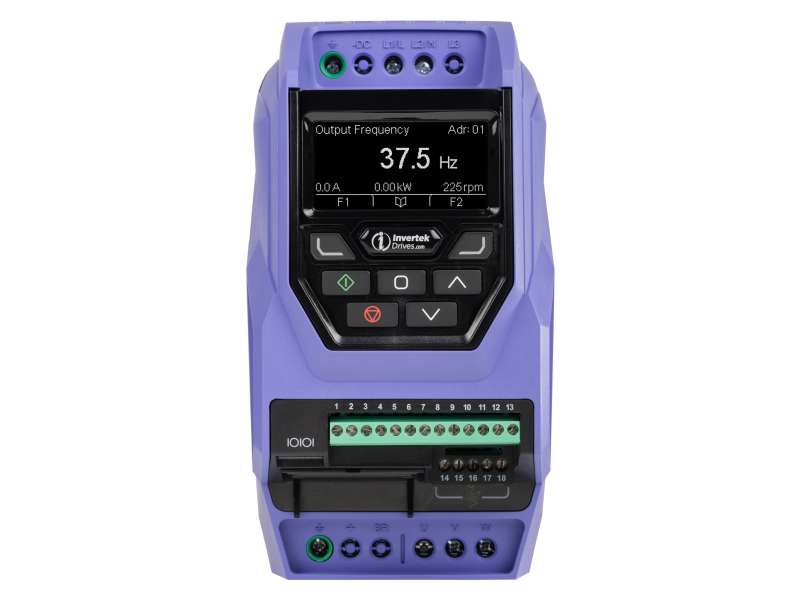

Name: INVERTEK DRIVES Optidrive P2, Single Phase Input , 1.5kW , IP20 ; ODP-2-22150-1KF42-MN
Brand: INVERTEK DRIVES
SKU: ODP-2-22150-1KF42-MN
Price: 466.20 RSD
Availability: OutOfStock

INVERTEK DRIVES Optidrive P2, Single Phase Input , 1.5kW , IP20 ; ODP-2-22150-1KF42-MN

INVERTEK DRIVES Optidrive P2, Single Phase Input , 1.5kW , IP20 ; ODP-2-22150-1KF42-MN

Invertek Optidrive P2, ODP-2-22150-1KF42-MN , 200-240V single phase input, 3 phase output, 1.5kW, 7A, IP20 LED display. DIN rail mountable High performance open...

Brand: INVERTEK DRIVES
Product Code: ODP-2-22150-1KF42-MN
Availability: Check availability

VAT-exclusive price: 388,50 €

VAT-inclusive price: 466,20 €

Qnt:

Invertek Optidrive P2, ODP-2-22150-1KF42-MN , 200-240V single phase input, 3 phase output, 1.5kW, 7A, IP20
LED display.
DIN rail mountable
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Safe Torque Off

Power (kW)	1.5
Power (HP)	2
Input Voltage	200-240V
Output Voltage	0-input Voltage
Input Phases	1
Output Current	7A
Input Current	15.2A
Enclosure rating	IP20
Width	110mm
Height	285mm
Depth	185mm
Frame Size	2
Overload	200%
Duty	Heavy
Dynamic Braking	Yes
Weight	1.8kg
Control Type	Open or closed loop vector or V/f
Input Frequency	48-62Hz
Output Frequency	0-500Hz
Max Temperature	50 ͦC
Digital Inputs	5
Digital Outputs	2
Analogue Inputs/Ps	2
Analogue Outputs/Ps	2
Output relay(s)	2
Serial Comms	Modbus, CANopen
Approvals	UL. cUL, C- Tick, Gost R, ROHS
