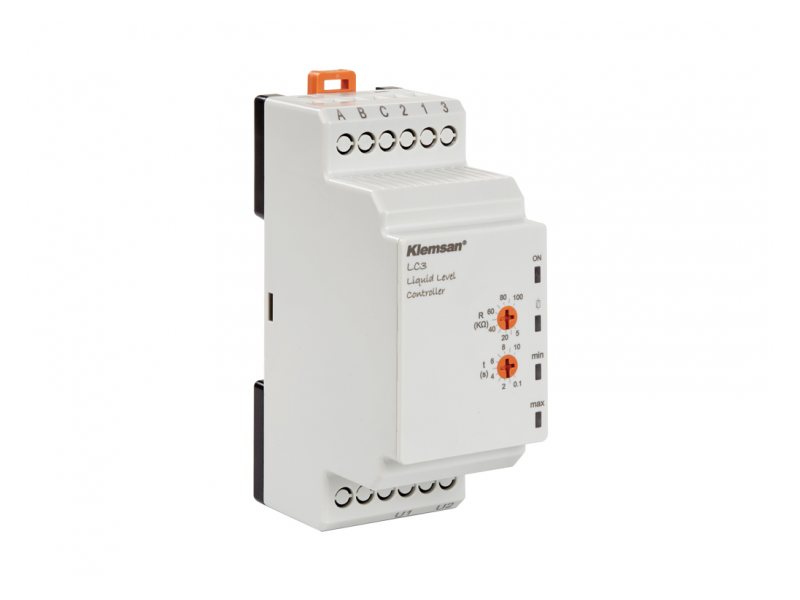

Klemsan Liquid Level Controller LC3 ; 270001
Liquid level controller LC3. LC3 controls levels of conductive liquids by measuring the resistance of the liquid between probes. If measured resistance is less than...
VAT-exclusive price: 32,87 € |
VAT-inclusive price: 39,44 € |
Liquid level controller LC3. LC3 controls levels of conductive liquids by measuringthe resistance of the liquid between probes. If measuredresistance is less than the value adjusted from the frontpanel, output relay will be activate.
To avoid electrolysis, an AC signal is applied to the liquid
To avoid electrolysis, an AC signal is applied to the liquid
| General | |||
| Order Number | 270 001 | ||
| Casing Width (mm) | 36 | ||
| Connections | Screw Terminal | ||
| Functions | LC | ||
| Type of Output | Relay | ||
| Adjustment of Timing-1 & Timing-2 | --- | ||
| Lux Adjustment Rate | --- | ||
| Sensitivity Adjusement Rate | 5 - 100 KΩ | ||
| Supply Frequency | 35-70 Hz | ||
| Trigger Input Voltage | --- | ||
| Recovery Time | Maks. 100ms | ||
| Protection Class | IP20 | ||
| Weight (g) | 82 | ||
| Mounting Type | Panel & Rail | ||

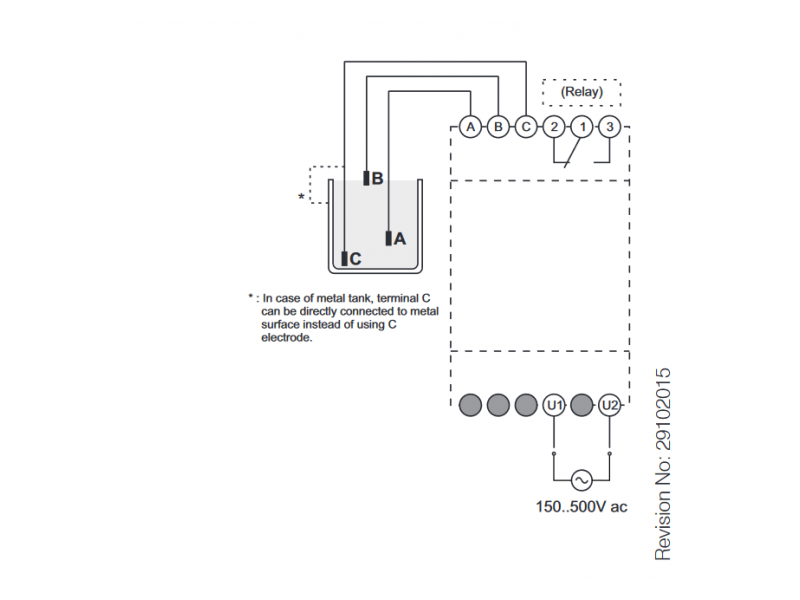

| Schematics | 280 610 | ||

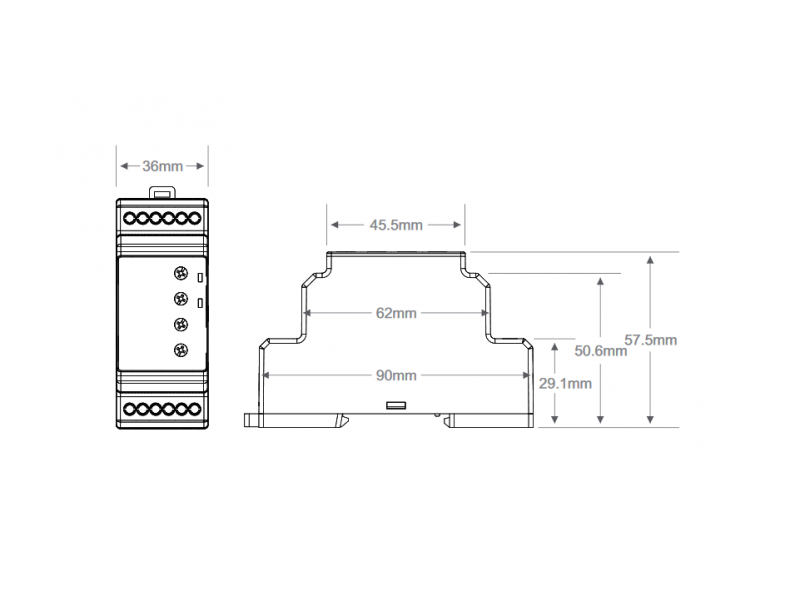

| Dimensions | --- | ||
| Auxilary Contacts | Type | 1 C/O (SPDT) | |
| Max. Ratings - AC (for NO side) | 5A/250V; 1250VA | ||
| Max. Ratings - DC (for NO side) | 5A/30VDC; 150W | ||
| Mechanical Lifetime | ≥ 107 operations | ||
| Electrical Lifetime Operations (for NO side) | 5x104(5A@250VAC) 1x 105 (5A@30VDC) | ||
| Time Range | Timing-1 | 1s => 1s | |
| Timing-2 | --- | ||
| Supply Voltage | DC | --- | |
| AC | 150-500VAC | ||
| Ambient Conditions | Operating Temperature | -20 to + 60°C | |
| Storing Temperature | -40°C +75°C | ||
| Relative Humidity (No Condensation) | Maks. 95% | ||
| Power Consumption | DC | --- | |
| AC | <7VA | ||
| EMC-EMI | 55011/A1, 61000-4-2, 61000-4-3/A1, 61000-4-4, 61000-4-5, 61000-4-6, 61000-4-8, 61000-4-11 | ✔ | |
| Accessories | Liquid Level Electrode | Definition | Liquid Level Probe for LC3 |
| Order Number | 280610 | ||
| Packing Units | 1 | ||
-
LC3 29102015
-
LC3 06072020
-
lc3leaflet En
