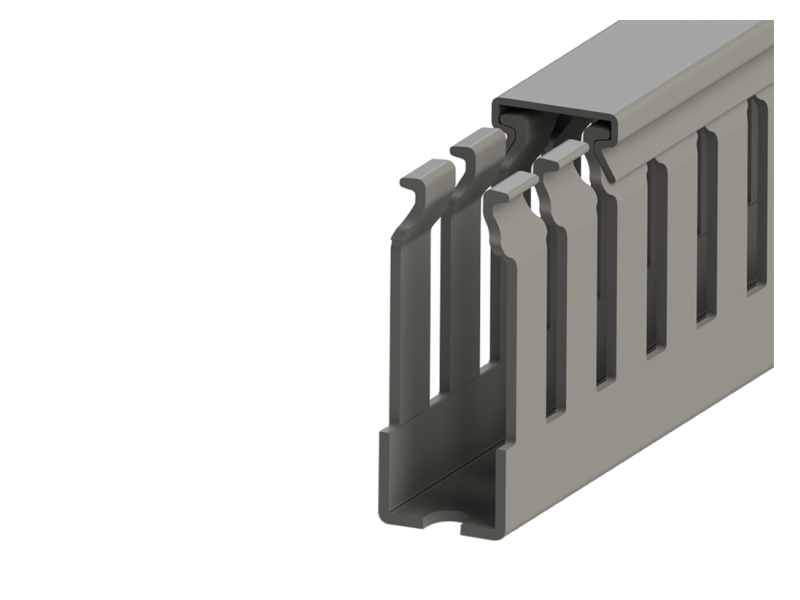

Klemsan Slotted wiring duct 15x40 ; 551080
Medium slotted wiring duct KKC1540 dimensions 15x40 with 5mm slot. Standard length 2m and grey color RAL 7030. Complies with RoHS. Complies with standards IEC 60695-2-1...
Price on request
Medium slotted wiring duct KKC1540 dimensions 15x40 with 5mm slot. Standard length 2m and grey color RAL 7030.
Complies with RoHS.
Complies with standards IEC 60695-2-1 and EN 50085-2-3.
More details in teh.specification.
Complies with RoHS.
Complies with standards IEC 60695-2-1 and EN 50085-2-3.
More details in teh.specification.
| General Product Information | Insulating material | PVC - UL 94 V0 | |

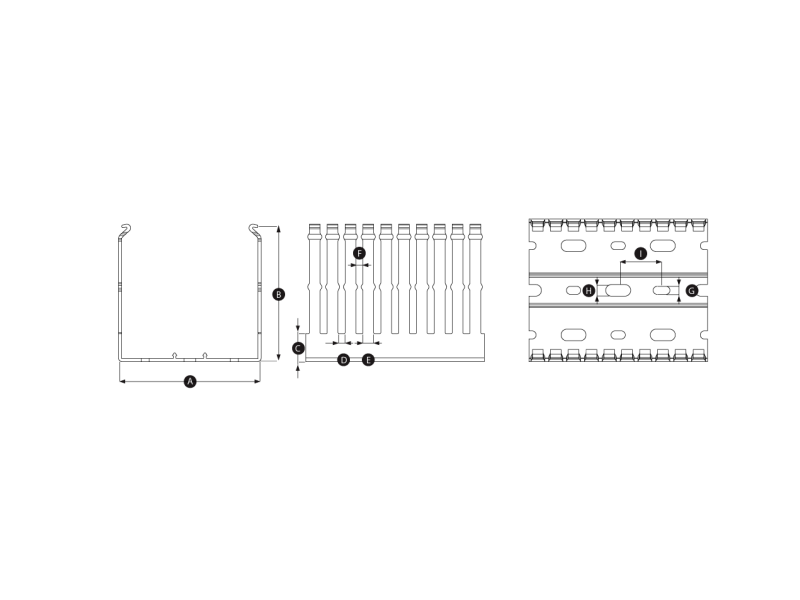

| Dimensions | A | 15 mm | |
| B | 40 mm | ||
| C | 10,2 mm | ||
| D | 5 mm | ||
| E | 7,5 mm | ||
| F | 2 mm | ||
| G | 4,5 mm | ||
| H | --- mm | ||
| I | 25 mm | ||
| Operating Temperature | Minimum Temperature | -15°C | |
| Maximum Temperature | +60°C | ||
| Length | U | 2 Mt. | |
| Product Information | Packing Unit | 80x2 | |
