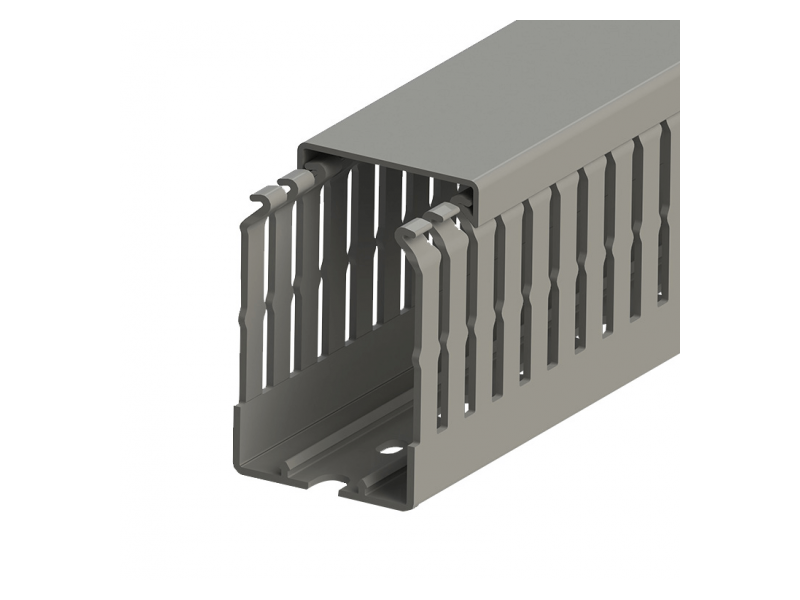

Klemsan Slotted wiring duct 40x60 ; 551014
Narrow slotted wiring duct, dimensions 40x60mm. Color option : Grey RAL 7030. 2 meters length. Complies with RoHS regulations. Complies with IEC 60695-2-12 and EN...
Price on request
Narrow slotted wiring duct, dimensions 40x60mm. Color option : Grey RAL 7030. 2 meters length.
Complies with RoHS regulations.
Complies with IEC 60695-2-12 and EN 50085-2-3
More details in teh.specification.
Complies with RoHS regulations.
Complies with IEC 60695-2-12 and EN 50085-2-3
More details in teh.specification.
| General Product Information | Insulating material | PVC - UL 94 V0 | |
| Operating Temperature | Minimum Temperature | -15°C | |
| Maximum Temperature | +60°C | ||
| Dimensions | A | 40 mm | |
| B | 60 mm | ||
| C | 13,6 mm | ||
| D | 4 mm | ||
| E | 6 mm | ||
| F | 2,1 mm | ||
| G | 4,5 mm | ||
| H | 6,5 mm | ||
| I | 25 mm | ||
| Length | U | 2 Mt. | |
| Product Information | Packing Unit | 12x2 | |
