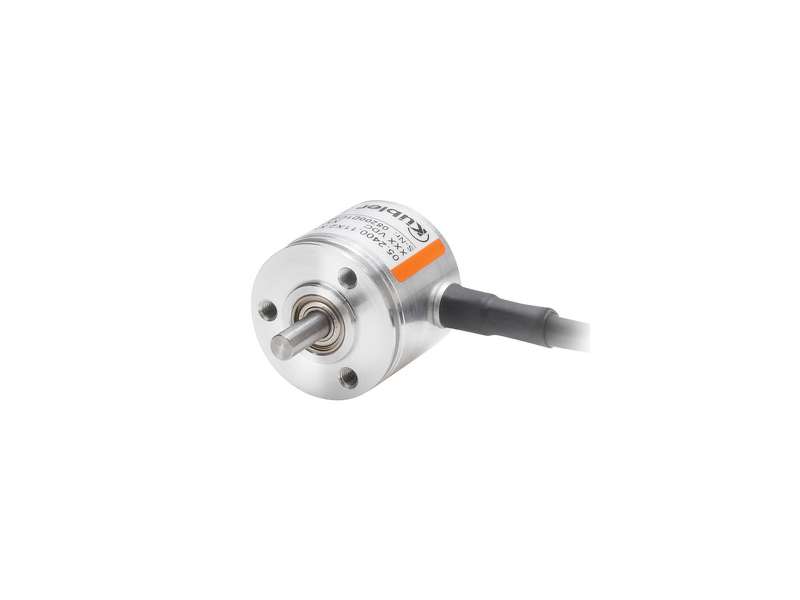

Kuebler 2400 Optički mini enkoder 24mm ; 05.2400.XXXX.XXXX
Ideal for the tightest installation spaces: Optical miniature encoders. The 2400 / 2420 incremental miniature encoders with their optical sensor technology provide...
Price on request
Ideal for the tightest installation spaces: Optical miniature encoders.
The 2400 / 2420 incremental miniature encoders with their optical sensor technology provide a resolution of up to 1024 pulses per revolution.
With a diameter of only 24 mm, these encoders are particularly suitable for use in confined spaces.
Reliable
- Robust bearing structure
- Multiple clamping gives the cable outlet a high strain relief
- Short-circuit resistant outputs
- Ideally suited for use in small devices
- meet the certification requirements of the EN 50121 railway standard

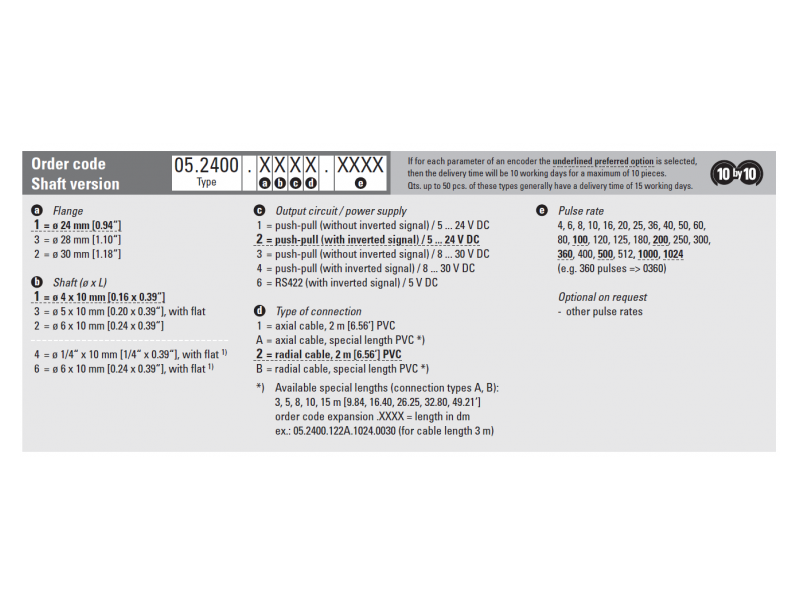

| Mechanical | |
|---|---|
| Dimension | Ø 24 mm |
| Shaft type |
4 mm shaft, round 6 mm shaft, round 5 mm shaft, with flat surface 6 mm shaft, with flat surface 1/4 " shaft, with flat surface |
| Flange type |
Ø 24.00 mm Ø 28.00 mm Ø 30.00 mm |
| Working temperature | -20 °C ... +85 °C |
| Protection level |
IP50 IP64 IP65 |
| Connection types |
Axial cable Radial cable |
| Max. rotational speed | 12.000 min-1 |
| Weight | 60 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. | 1.024 ppr incremental |
| Supply voltage |
5...24 V DC 8...30 V DC |
| Interfaces | Push-pull |
-
2400-2420 en
