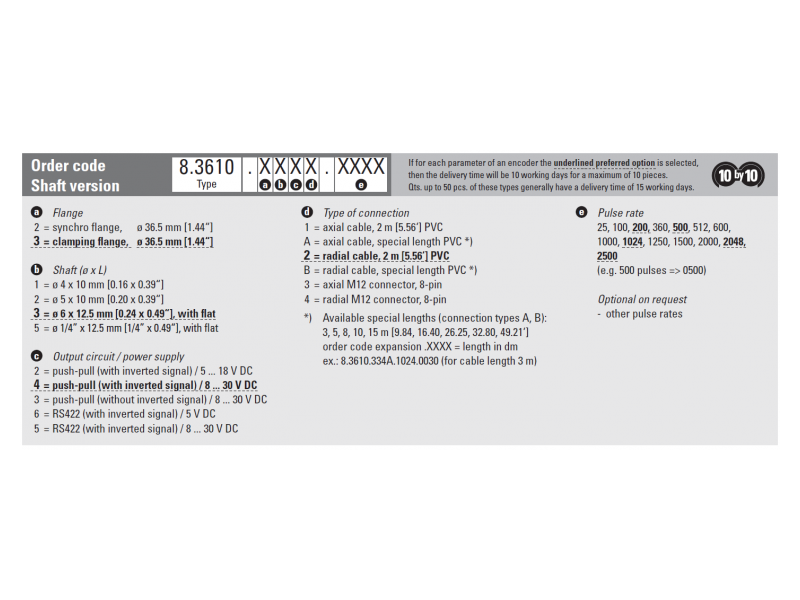

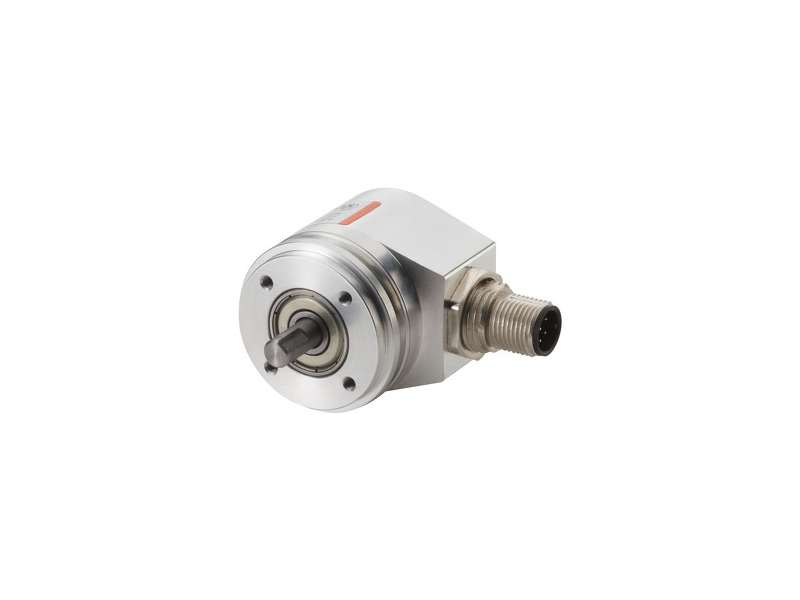

Kuebler 3610-Optički kompaktni enkoder ; 8.3610.XXXX.XXXX
Suitable for tight installation spaces. The incremental compact encoders 3610 / 3620 with optical sensors are available up to a resolution of 2500 pulses per revolution....
Price on request
Suitable for tight installation spaces.
The incremental compact encoders 3610 / 3620 with optical sensors are available up to a resolution of 2500 pulses per revolution.
The versions with through hollow shaft are designed for diameters up to 8 mm.
Compact
- Only 36 mm and 38 mm outside diameter.
- Continuous hollow shaft up to 8 mm.
- Ideally suited for limited installation space.
- Available with cable outlet or M12 plug.
- Maximum resolution 2500 pulses per revolution.
- Supply voltage 5 to 18 V DC or 8 to 30 V DC.
| Mechanical | |
|---|---|
| Dimension | Ø 36 mm |
| Shaft type |
4 mm shaft, round 5 mm shaft, round 6 mm shaft, with flat surface 1/4 " shaft, with flat surface |
| Flange type |
Synchro flange / Servo flange Clamping flange Ø 36.00 mm Ø 36.50 mm |
| Working temperature | -20 °C ... +85 °C |
| Protection level |
IP50 IP64 IP65 |
| Connection types |
Axial cable Radial cable M12 connector axial M12 connector radial |
| Max. rotational speed | 12.000 min-1 |
| Weight | 80 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. | 2.500 ppr incremental |
| Supply voltage |
5 V DC 5...18 V DC 8...30 V DC |
| Interfaces |
Push-pull TTL / RS422 |
-
3610-3620 en
