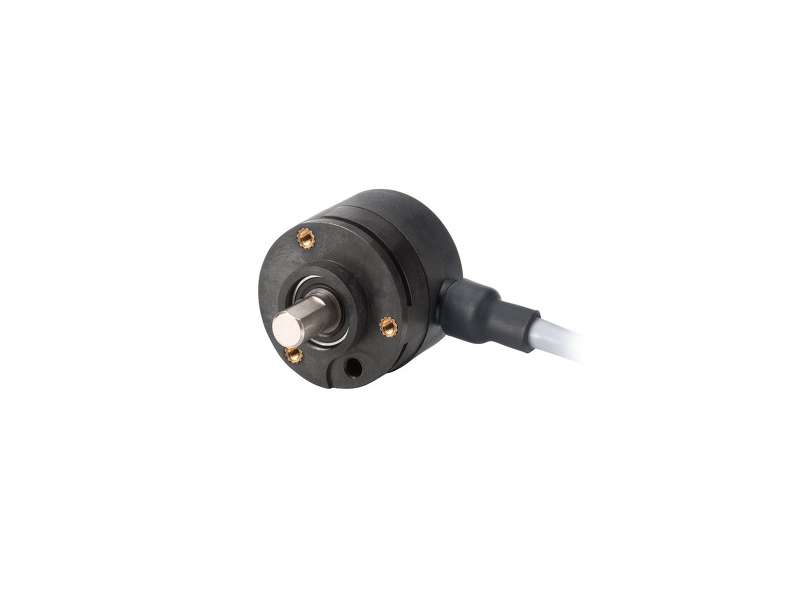

Kuebler 3700 Enkoder sa plastičnim kućištem ; 8.3700.XXXX.XXXX
Carbon fiber-reinforced plastic housing – economical sensor solution. The incremental compact encoders 3700 / 3720 with optical sensors are available with...
Price on request
Carbon fiber-reinforced plastic housing – economical sensor solution.
The incremental compact encoders 3700 / 3720 with optical sensors are available with a resolution of up to 1024 pulses per revolution. The carbon fiber reinforced plastic housing of these incremental encoders is nevertheless extremely robust and resistant. Due to their high IP protection, they are also suitable for outdoor use.
Reliable
- Tube Tech® cable outlet with extremely high strain relief.
- Also suitable for outdoor use due to the high IP protection.
- Continuous hollow shaft up to 8 mm.
- Only 37 mm diameter dimension.
- Up to 1024 pulses per revolution.
| Mechanical | |
|---|---|
| Dimension | Ø 37 mm |
| Shaft type |
4 mm shaft, with flat surface 5 mm shaft, with flat surface 6 mm shaft, with flat surface 8 mm shaft, with flat surface 1/4 " shaft, with flat surface |
| Flange type |
Synchro flange / Servo flange Clamping flange Ø 36.80 mm Ø 37.00 mm Ø 40.00 mm |
| Working temperature | -20 °C ... +70 °C |
| Protection level |
IP65 IP67 |
| Connection types |
Axial cable Radial cable |
| Max. rotational speed | 6.000 min-1 |
| Weight | 100 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. | 1.024 ppr incremental |
| Supply voltage |
5 V DC 5...30 V DC 10...30 V DC |
| Interfaces |
Push-pull TTL / RS422 |
-
3700-3720 en
