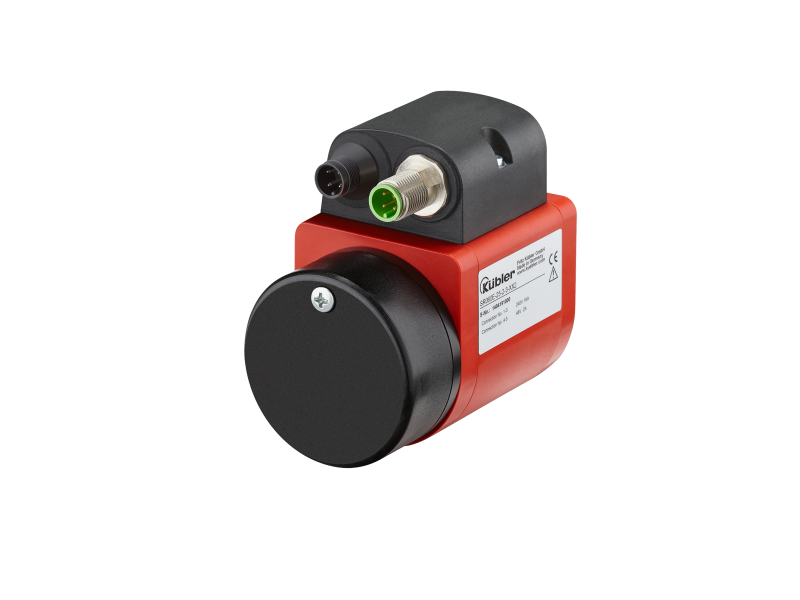

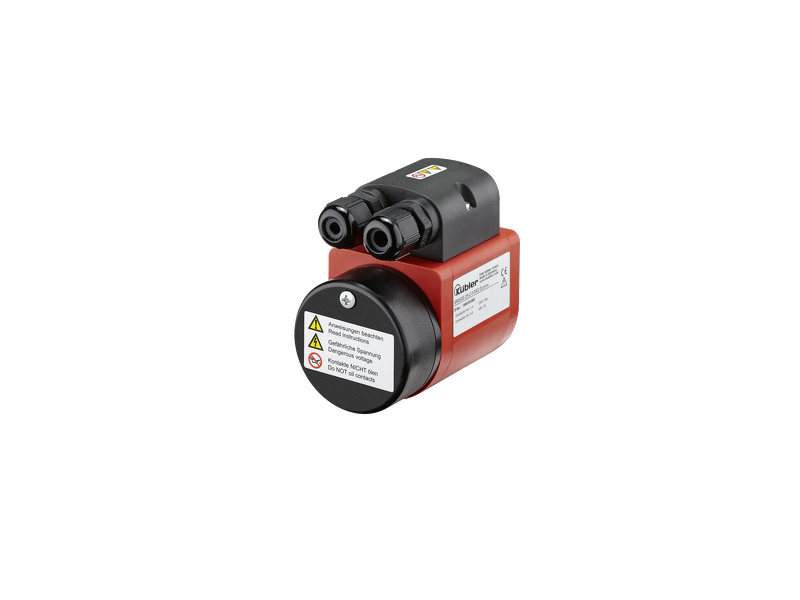

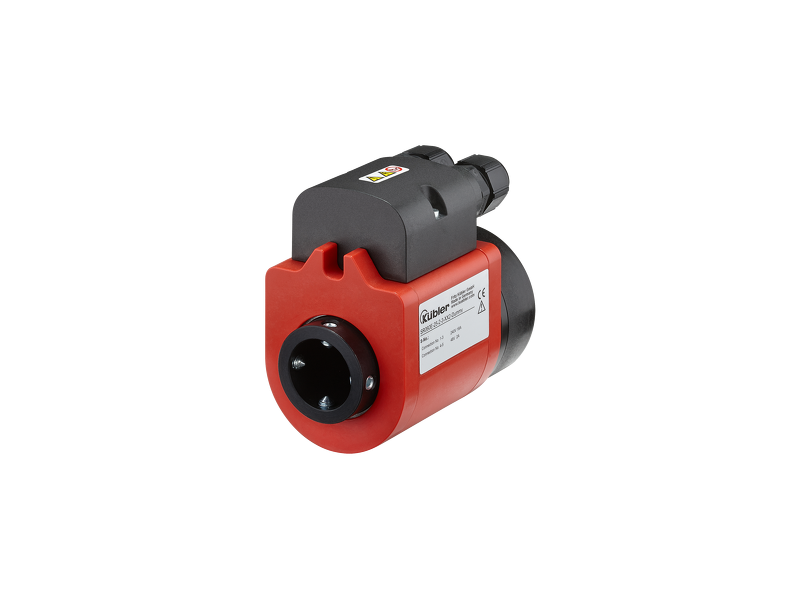

Kuebler Compact slip ring SR060E, 25mm; SR060E-25-2-2-132-V122
The flow pack specialist: the compact slip ring. In general slip rings are used to transmit power, signals or data from a stationary to a rotating platform. The...
VAT-exclusive price: 600,00 € |
VAT-inclusive price: 720,00 € |
The flow pack specialist: the compact slip ring.
In general slip rings are used to transmit power, signals or data from a stationary to a rotating platform.The SR060E is a compact, economical slip ring for up to 3 power and 2 signal transmissions.
New innovative contact materials ensure long service life and extremely low-maintenance operation. The round shape with smooth surfaces and high protection level allows easy cleaning.
Slip ring
SR060E
- Heating and monitoring of sealing rollers
- Compact solution
- Long service life
- With connector
| Electrical | |
|---|---|
| Max. number of signal channels | 2 |
| Max. number of load channels | 3 |
| Load current transmission |
16 A, 240 V AC 20 A, 240 V AC/DC |
| Mechanical | |
|---|---|
| Dimension | 60 mm |
| Mounting type |
20 mm Hollow shaft, through 22 mm Hollow shaft, through 24 mm Hollow shaft, through 25 mm Hollow shaft, through |
| Working temperature | 0 °C ... +75 °C |
| Protection level | IP64 |
| Rotational speed | 500 min-1 |
| Service life | 500 million revolutions |
| Maintenance cycles | 100 million revolutions |
-
SR060E en
