Kuebler Draw- wire enkoder za merenje dužine do 3m B80 ; D8.4B1.XXXX.XXXX.XXXX
Draw-wire encoder B80 The B80 draw-wire encoder can be used up to a measuring length of 3 meters. This draw wire can be combined with the proven Kübler Sendix...
Price on request

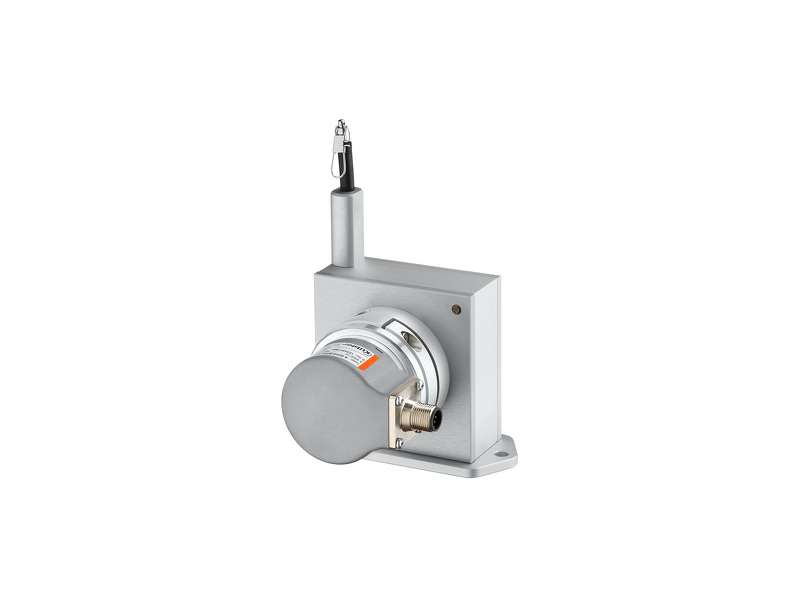

Draw-wire encoder B80
The B80 draw-wire encoder can be used up to a measuring length of 3 meters.This draw wire can be combined with the proven Kübler Sendix encoders with incremental or absolute interface as well as with analog sensors.
Robust
- Titanium anodized aluminum housing and stainless steel cables
enable use even under extreme conditions
- Low-wear cable exit due to special slide bearing guide
Versatile
High dynamics up to 10 m/s
- High acceleration up to max. 140 m/s2
- Fast fastening with 2 screws
- Various connection types available
| Mechanical | |
|---|---|
| Measuring system | Draw-wire encoders |
| Measuring length |
1 m 2 m 3 m |
| Speed | 10 m/s |
| Dimension | 80 mm x 80 mm x 144 mm |
| Working temperature | -20 °C ... +90 °C |
| Protection level | IP65 |
| Weight | 750 g |
| Electrical | |
|---|---|
| max. linearity | ±0,02 % |
| Interfaces |
Analog 0–10 V EtherNet/IP CANopen EtherCAT Push-pull TTL / RS422 SAE J1939 SinCos PROFIBUS DP PROFINET IO SSI, binary BiSS |
| Supply voltage | 12...30 V DC |
-
B80 en
