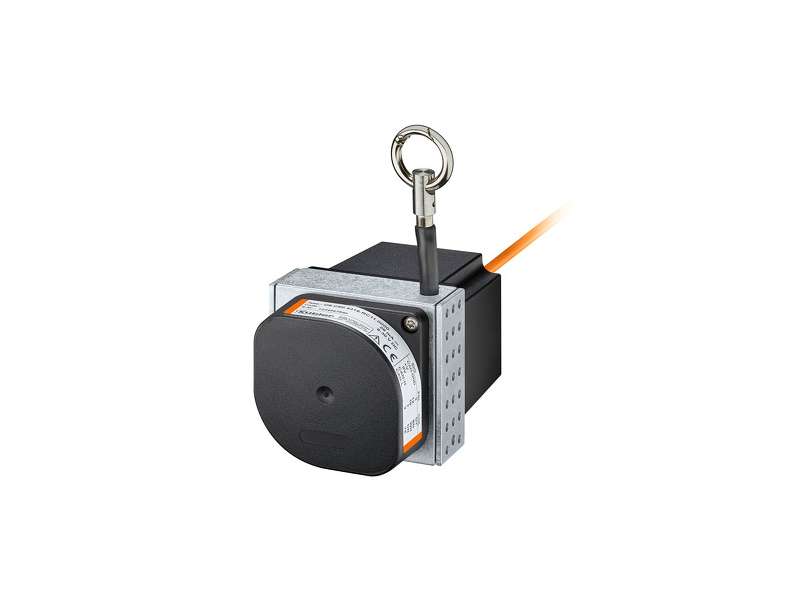

Kuebler Draw-wire enkoder za merenje dužine do 4m C60 ; D8.C60.XXXX.XXXX
Draw-wire encoders – suitable for the harshest environments. Thanks to an extremely robust construction, high protection class IP69k and wide temperature range...
Price on request
Draw-wire encoders – suitable for the harshest environments.
Thanks to an extremely robust construction, high protection class IP69k and wide temperature range from -40°C to +85°C, the new C60 draw-wire encoders are particularly reliable and durable. Their flexibility and adaptability is reflected in the wide selection of housing and cable types, wide measuring range. and variety of interfaces. The possibility of redundancy should be emphasized here.
Robust
Versatile
- Protection up to IP69k, wide temperature range -40 to +85 °C
- The titanium anodized aluminum housing and the stainless steel cables enable use even under extreme conditions
- Wire diameter (stainless steel, V4A) up to 1 mm – ideal for outdoor applications.
Versatile
- Measuring length up to 4 m
- Redundant outputs (mA, V, R, CANopen)
- The right measuring wire and the right wire fastening for every application
- Linearity up to ± 0.1% of the measuring range
- Different designs: open, closed housing, or housing with perf sheet cover
| Mechanical | |
|---|---|
| Measuring system | Draw-wire encoders |
| Measuring length |
1 m 1,5 m 2 m 2,5 m 3 m 3,5 m 4 m |
| Speed | 3 m/s |
| Dimension | 60 mm x 60 mm x 107 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP67 IP69k |
| Weight | 420 g |
| Electrical | |
|---|---|
| max. linearity | ±0,1 % |
| Interfaces |
Analog 0–10 V CANopen |
| Supply voltage | 12...30 V DC |
-
C60 en
