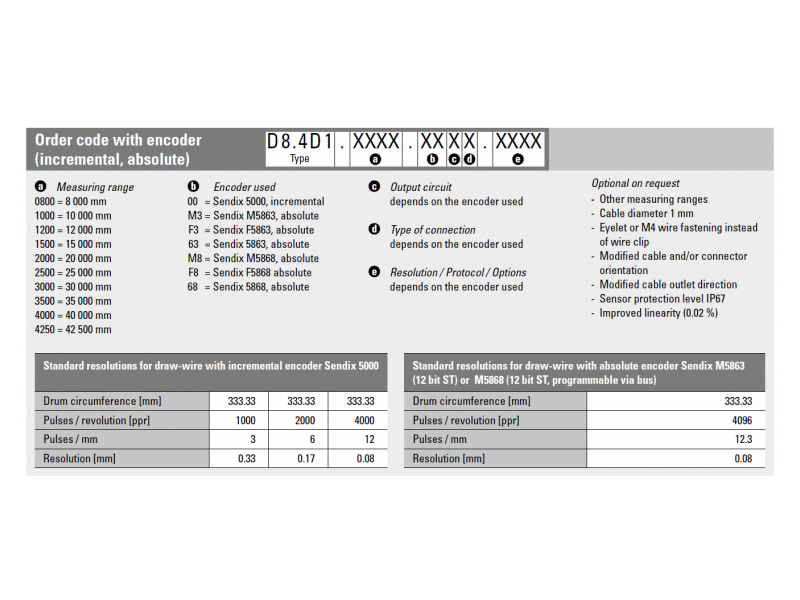

Kuebler Draw wire enkoder za merenje dužine od 8m do 42.5m D135; D8.4D1.XXXX.XXXX.XXXX
Draw-wire encoder D135 The D135 draw-wire encoder can be used up to a measuring length of 42.5 m. This draw wire can be combined with the proven Kübler Sendix...
Price on request

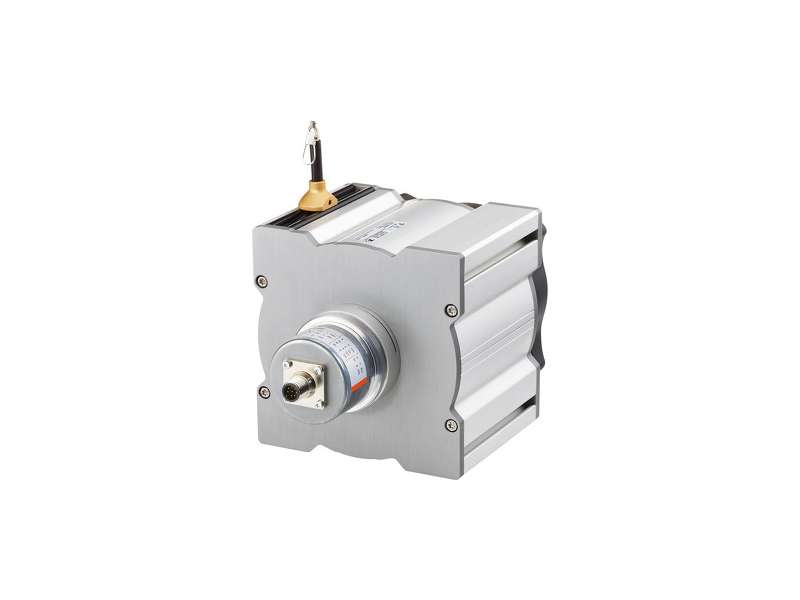

Draw-wire encoder D135
The D135 draw-wire encoder can be used up to a measuring length of 42.5 m.This draw wire can be combined with the proven Kübler Sendix encoders with incremental or absolute interface as well as with analog sensors.
With its compact design, the D135 is ideally suited for all measuring tasks from 8 to 42.5 meters.
Robust
- Titanium anodized aluminum housing and stainless steel cables
enable use even under extreme conditions
- Low-wear cable exit due to special slide bearing guide
Versatile
- High travel speed and high acceleration
- Flexible mounting via mounting feet or mounting groove
- Various connection types available
| Mechanical | |
|---|---|
| Measuring system | Draw-wire encoders |
| Measuring length |
8 m 10 m 12 m 15 m 20 m 25 m 30 m 35 m 40 m 42,5 m |
| Speed | 10 m/s |
| Dimension | 135 mm x 135 mm x 318 mm |
| Connection types |
Axial cable M23 connector axial M12 connector axial MIL connector |
| Working temperature | -20 °C ... +90 °C |
| Protection level | IP65 |
| Electrical | |
|---|---|
| max. linearity | ±0,02 % |
| Interfaces |
Analog 0–10 V EtherNet/IP CANopen EtherCAT Push-pull TTL / RS422 SAE J1939 SinCos PROFIBUS DP PROFINET IO SSI, binary BiSS |
| Supply voltage | 12...30 V DC |
-
D135 en
