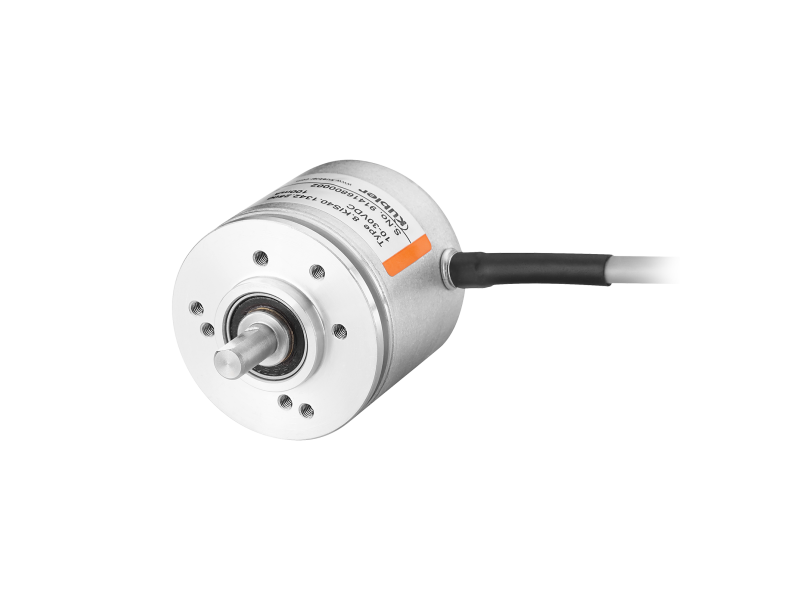

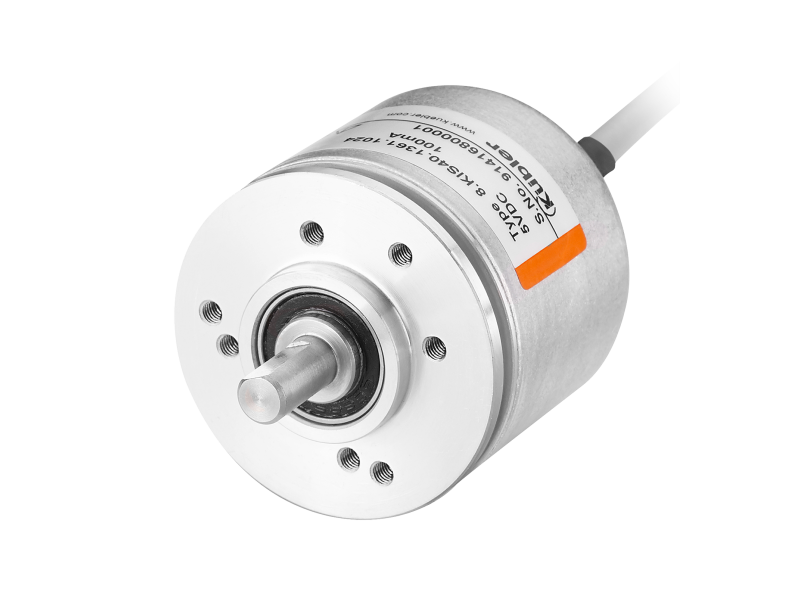

Kuebler Inkrementalni enkoder Sendix KIS40, fi40mm, puno vratilo, ekonomična varijanta ; 8.KIS40.1XXX.XXXX.PXX
The economical sensor solution. The Sendix KIS40 / KIH40 incremental compact encoders with optical sensors are designed for maximum economy and are available with...
The economical sensor solution.
The Sendix KIS40 / KIH40 incremental compact encoders with optical sensors are designed for maximum economy and are available with a resolution of up to 2500 pulses per revolution. Special details from the sophisticated Sendix technology can be found in these encoders. This results in a special resistance to vibrations and installation errors. It sets new standards in cost-sensitive applications. The wide performance range opens up many fields of application and is therefore particularly suitable for narrow installation spaces as well as smaller machines and devices.
- Only 40 mm outer diameter.
- Ideally suited for limited installation space.
- Robust bearing design in safety Lock™ design.
- Safe commissioning: Reverse polarity protection and short-circuit proof.
- Maximum resolution 2500 pulses per revolution.
- Supply voltage 5 V DC or 10 to 30 V DC.
- Push-pull, RS422 or Open collector.
- Cable radial or axial.
| Mechanical | |
|---|---|
| Dimension | Ø 40 mm |
| Shaft type |
6 mm shaft, with flat surface 8 mm shaft, with flat surface 1/4 " shaft, with flat surface |
| Flange type |
Synchro flange / Servo flange Clamping flange Ø 40.00 mm |
| Working temperature | -20 °C ... +70 °C |
| Protection level | IP64 |
| Connection types |
Axial cable Radial cable |
| Max. rotational speed | 4.500 min-1 |
| Weight | 170 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. | 2.500 ppr incremental |
| Power supply |
5 V DC 10...30 V DC |
| Interfaces |
Gegentakt TTL / RS422 Open Collector |
-
KIS40-KIH40 en(2)
