Name: Kuebler Multifunkcionalni brojač Codix 524 ; 6.524.01X.3X0
Brand: Kuebler

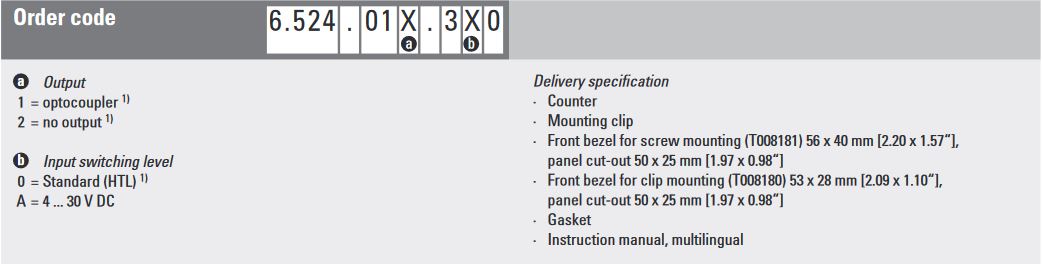

SKU: 6.524.01X.3X0
Availability: OutOfStock

Kuebler Multifunkcionalni brojač Codix 524 ; 6.524.01X.3X0

Multifunction counter – up to 4 functions in one device. The Codix 524 is a power-supplied multifunction counter with 4 functions in one device: Pulse and...

Brand: Kuebler
Product Code: 6.524.01X.3X0
Availability: Check availability

Price on request

Multifunction counter – up to 4 functions in one device.

The Codix 524 is a power-supplied multifunction counter with 4 functions in one device:
Pulse and position display, frequency and speed display, time counter and short time meter for fast and slow counting pulses. With 6-digit LED display for NPN, PNP input signals.

Powerful

Fast counter and frequency input, input frequency max. 60 kHz
Robust housing - IP65 protected
Very bright LED display, 8 mm high, 6 digits
Exact and high-precision frequency measurement method (HRA-High Rate Accuracy System)

Frequencies up to 38 Hz are measured by a period duration measurement are evaluated. Frequencies > 38 Hz are controlled via a special

Gate time measurement evaluated.

Despite a short gate time, a very high accuracy of < 0.1% achieved. The measurement result is available after max. 50 ms.

Short start-up time - Detected after power supply is switched on incoming pulses already after 16 ms => none Pulse loss with simultaneous motor start

User-friendly and universal

Large keys (can also be operated with gloves)
Programming:
- Simple and uniform programming and operation by plain text programming.
- Access to programming also during operation with safety prompt
Individually adjustable scaling
Multiplication and division factor (0.0001 to 99.9999), in order to calculate corresponding units in e.g. position in 1/10 mm and speed to be displayed in /RPM
4 different counter input types for the position display: Counting direction, difference or addition mode, phase discriminator with single, double, or quadruple evaluation
Frequency measurement (display in 1/min or 1/sec)
Time counting: Pulse width or period duration measurement in hours, minutes or seconds, as well as real-time display
Inputs: As an alternative to the HTL inputs, the following devices are also available with 4 to 30 V DC input level for use as a parallel display for PLC
Optional with output: 0 signal for position and counting, Standstill monitoring at speed, 1 Hz cycle during active timing

Mechanical
Model	Multifunction device electronic
Functions	Pulse counter Frequency display Position displays without limit values Tachometer without limitvalues Hour meters / timers Short-time meter
Dimension ¹	48 x 24 mm \| 45 x 22 mm
Protection level	IP65
Working temperature	-20 °C ... +65 °C
Weight	50 g
Reset	electronic
