Kuebler RLA50 Apsolutni enkoder bez ležaja za osovine prečnika do 30mm ; 8.RLA50.131X2.XXXX.XXXX
Absolute contactless measuring principle, ideal for position or angle detection The RLA50 bearingless encoder, consisting of magnetic ring and sensor head, with...
Price on request
Absolute contactless measuring principle, ideal for position or angle detection

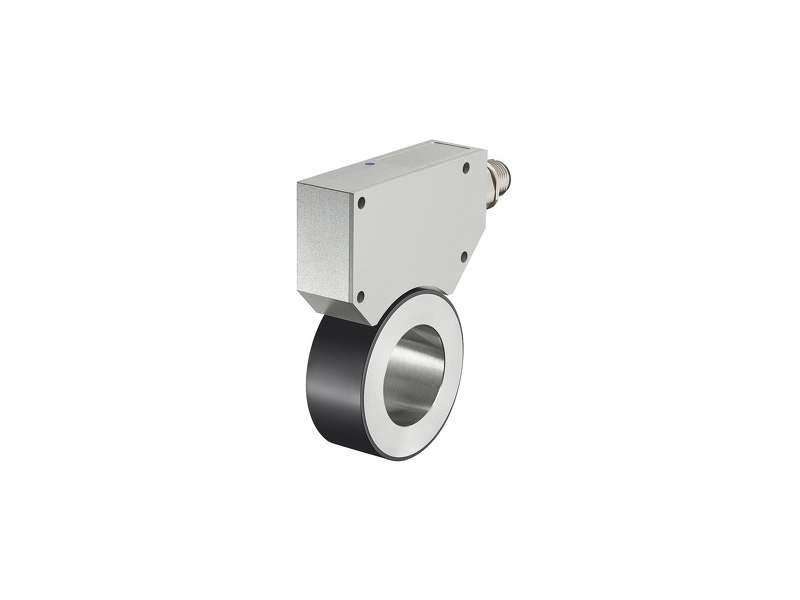

The RLA50 bearingless encoder, consisting of magnetic ring and sensor head, with its installation depth of only 20 mm is ideally suited for narrow installation possibilities. Its contactless measuring principle enables error-free operation even under adverse environmental conditions and a long service life.This bearingless encoder can be mounted on shafts with a diameter of 30 mm.
Efficient
- High shock and vibration resistance.
-
Contactless and wear-free measuring system for
long service life. - High resolution, 16 000 measuring steps / revolution.
- Direct measurement on shaft or axis.
- Distance monitoring by LED.
- Large mounting tolerance between magnetic ring and sensor head.
- Requires very little installation space.
- Connection via M12 plug.
| Mechanical | |
|---|---|
| Shaft type | 30 mm hollow shaft, through |
| Working temperature | -10 °C ... +70 °C |
| Protection level | IP50 |
| Connection types | M12 connector axial |
| Max. rotational speed | 1.000 min-1 |
| Electrical | |
|---|---|
| Scanning | magnetic |
| Resolution max. | 24 bits singleturn |
| Supply voltage | 10...30 V DC |
| Interfaces |
CANopen SSI, binary |
-
RLA50 en
