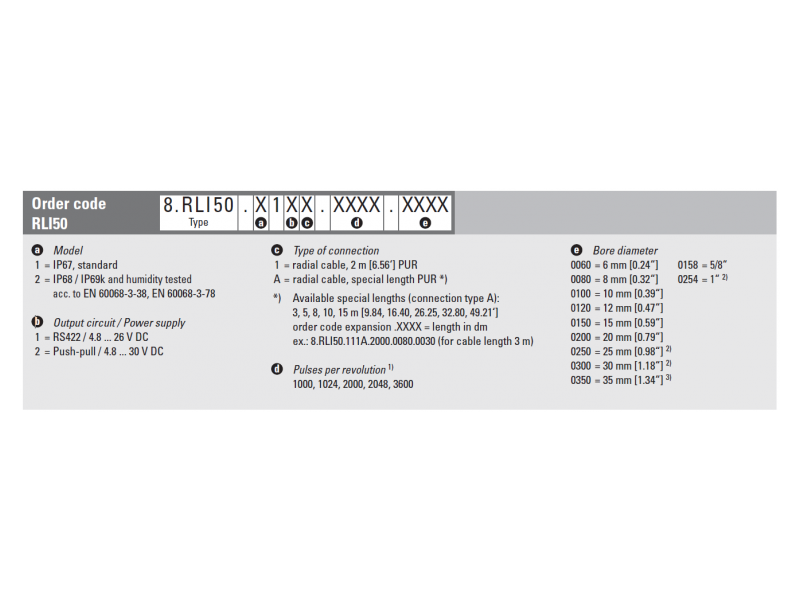

Kuebler RLI50 Inkrementalni enkoder bez ležaja za prečnik osovine do 35mm ; 8.RLI50.X1XX.XXXX.XXXX
Bearingless encoder for shaft diameter up to 35 mm. The RLI50 bearingless encoder with zero pulse, consisting of magnetic ring and sensor head, with its installation...
Bearingless encoder for shaft diameter up to 35 mm.

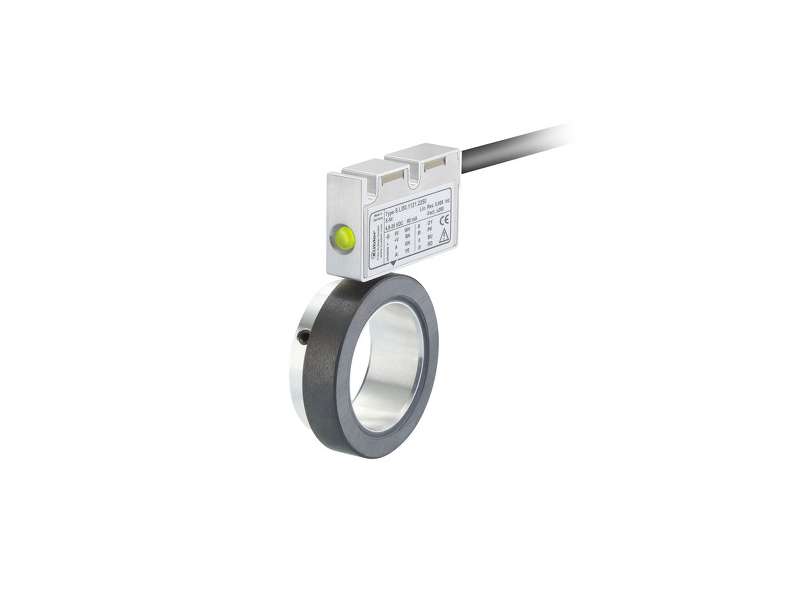

The RLI50 bearingless encoder with zero pulse, consisting of magnetic ring and sensor head, with its installation depth of only 16 mm is ideally suited for confined installation possibilities. Its contactless measuring principle enables error-free operation even under adverse environmental conditions and a long service life. IP68 / IP69k protection, special encapsulation technology, and tested resistance to cyclic humidity and heat provide maximum reliability even in unprotected outdoor use. This bearingless encoder can be mounted on shafts up to max. 35 mm diameter.
Resistant and insensitive
- High shock and vibration resistance.
- Sturdy housing with IP67 protection, optionally with special housing for high resistance against condensation (IP68 / IP69k, resistance against cyclic humidity per EN 60068-3-38 as well as humidity and heat per EN 60068-3-78).
- Contactless and wear-free measuring system for long service life.
- Function indication by LED.
- Large mounting tolerance between magnetic ring and sensor head.
- Requires very little installation space.
- Easy adjustment by mounting via slotted holes.
| Mechanical | |
|---|---|
| Dimension | Ø 24 mm |
| Shaft type |
6 mm hollow shaft, through 8 mm hollow shaft, through 10 mm hollow shaft, through 12 mm hollow shaft, through 15 mm hollow shaft, through 20 mm hollow shaft, through 25 mm hollow shaft, through 30 mm hollow shaft, through 35 mm hollow shaft, through 5/8 " hollow shaft, through 1 " hollow shaft, through |
| Working temperature | -20 °C ... +80 °C |
| Protection level |
IP67 IP68 IP69k |
| Connection types | Radial cable |
| Max. rotational speed | 12.000 min-1 |
| Weight | 200 g |
| Scanning | magnetic |
| Resolution max. | 3.600 ppr incremental |
| Supply voltage |
4,8...26 V DC 4,8...30 V DC |
| Interfaces |
Push-pull TTL / RS422 |
-
