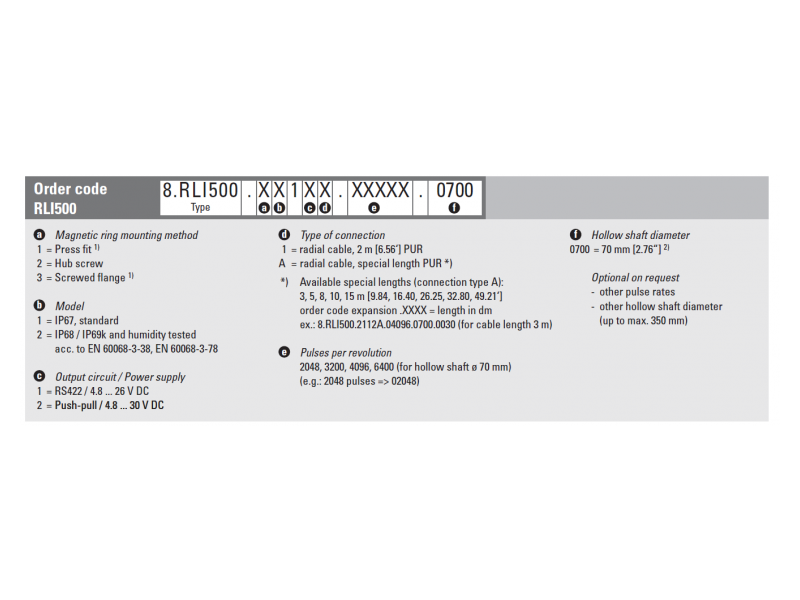

Kuebler RLI500 Inkrementalni enkoder bez ležaja za prečnik osovine do 350mm ; 8.RLI500.XX1XX.XXXX.0700
RLI500 The bearingless encoder RLI500 with zero pulse, consisting of magnetic ring and sensor head, with its installation depth of min. 10 mm is ideally suited for...
RLI500

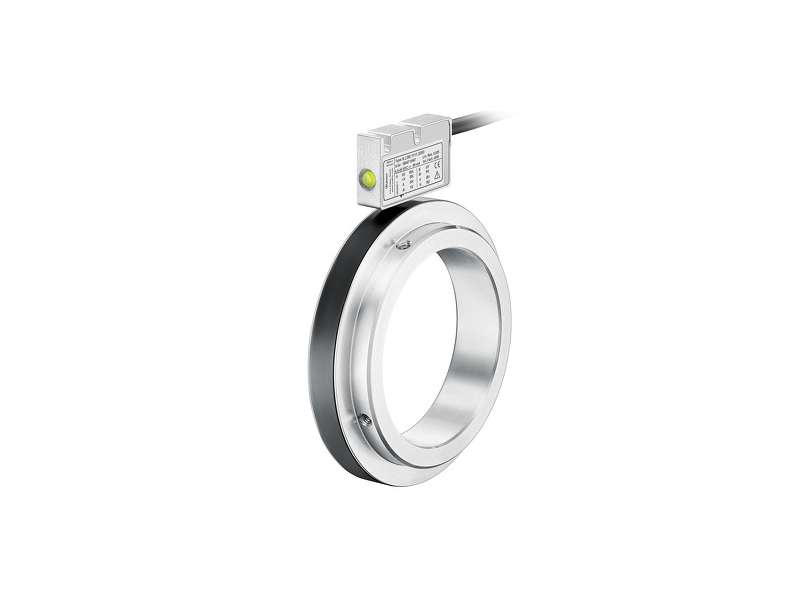

The bearingless encoder RLI500 with zero pulse, consisting of magnetic ring and sensor head, with its installation depth of min. 10 mm is ideally suited for confined installation possibilities. Its contactless measuring principle enables error-free operation even under adverse environmental conditions and a long service life. IP68 / IP69k protection, special encapsulation technology, and tested resistance to cyclic humidity and heat provide maximum reliability even in unprotected outdoor use. This bearingless encoder can be mounted on shafts up to max. 350 mm diameter.
LI500
Resistant and insensitive- High shock and vibration resistance.
- Sturdy housing with IP67 protection, optionally with special housing for high resistance against condensation (IP68 / IP69k, resistance against cyclic humidity per EN 60068-3-38 as well as humidity and heat per EN 60068-3-78).
- Contactless and wear-free measuring system for long service life.
- Function indication by LED.
- Large mounting tolerance between magnetic ring and sensor head.
- Requires very little installation space.
- Easy adjustment by mounting via slotted holes.
| Mechanical | |
|---|---|
| Shaft type | 70 mm hollow shaft, through |
| Working temperature | -20 °C ... +80 °C |
| Protection level |
IP67 IP68 IP69k |
| Connection types | Radial cable |
| Max. rotational speed | 12.000 min-1 |
| Electrical | |
|---|---|
| Scanning | magnetic |
| Resolution max. | 6.400 ppr incremental |
| Supply voltage |
4,8...26 V DC 4,8...30 V DC |
| Interfaces |
Push-pull TTL / RS422 |
-
RLI500 en
