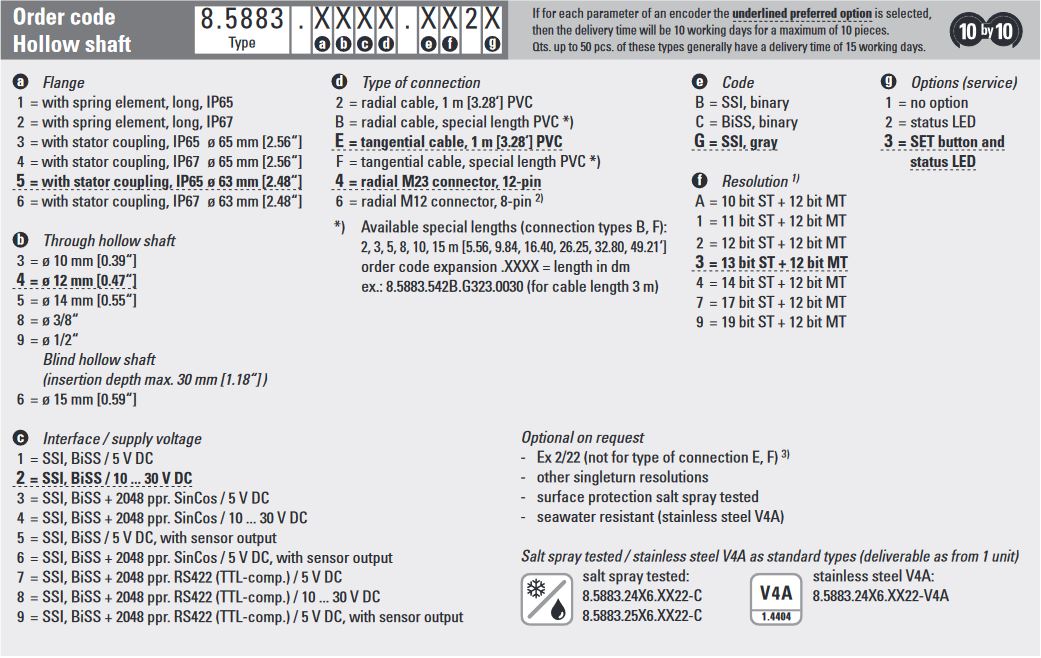

Kuebler Sendix 5883- Multiturn Za zahtevne aplikacije ; 8.5883.XXXX.XX2X
For challenging applications: Encoders with additional incremental track. The absolute encoders Singleturn Sendix 5863 / 5883 with SSI or BiSS interface and optical...
Price on request
For challenging applications: Encoders with additional incremental track.
The absolute encoders Singleturn Sendix 5863 / 5883 with SSI or BiSS interface and optical sensor technology achieve a resolution of 17 bit Singleturn and 12 bit Multiturn. In this standard size of 58 mm, a through hollow shaft up to 14 mm and a blind hole shaft up to 15 mm are possible. These encoders are also available with an additional incremental track.
Reliable
- Proven use in applications with the highest demands such as wind power or mobile automation.
- Absolutely reliable operation in the range of strong magnetic fields due to mechanical gear with optical sensor technology.
- Tight even in rough everyday use with stable die-cast housing.
- -40°C to +90°C: Use in a wide temperature range and IP67 protection.
- Available with SSI or BiSS interface and combined with SinCos incremental signals.
- The right fastening solution or type of connection is available for every application.
- SET button and LED for easy commissioning.
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, blind hole 3/8 " hollow shaft, through 1/2 " hollow shaft, through |
| Flange type |
Synchro flange / Servo flange Clamping flange Square flange Euro flange Ø 58.00 mm Ø 63.00 mm Ø 65.00 mm |
| Working temperature | -40 °C ... +90 °C |
| Protection level |
IP65 IP67 |
| Connection types |
Radial cable Tangential cable M23 connector radial M12 connector radial |
| Max. rotational speed | 9.000 min-1 |
| Weight | 450 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
2.048 ppr incremental 17 bits singleturn 12 bits multiturn |
| Supply voltage |
5 V DC 10...30 V DC |
| Interfaces |
SSI + 2048 ppr SinCos BiSS |
-
5863-5883 en(1)
