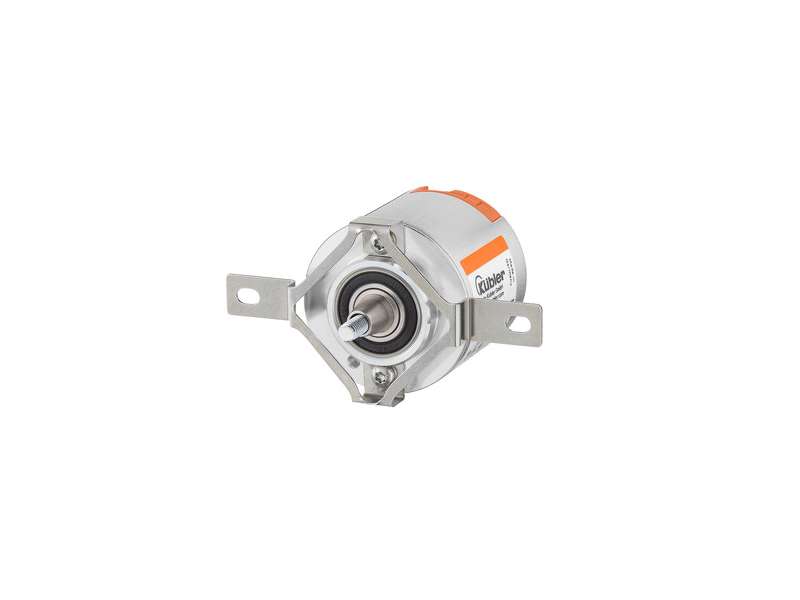

Kuebler Sendix S3684 Multiturn enkoder za servo motore ; 8.S3684.XXX1.XXXX.XXX
Motor feedback systems for servo motors: high-resolution and compact The Sendix S36 with optical singleturn and magnetic multiturn gears scores points with its combination...
Price on request
Motor feedback systems for servo motors: high-resolution and compact

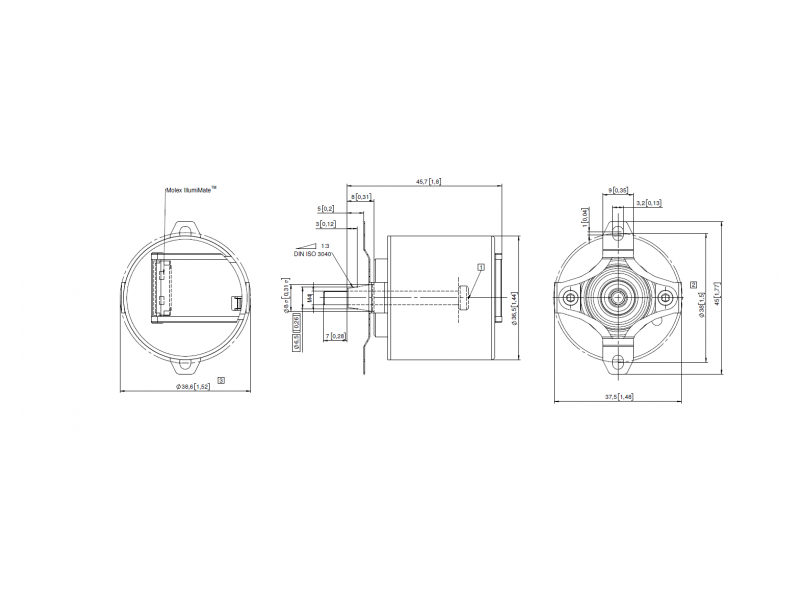

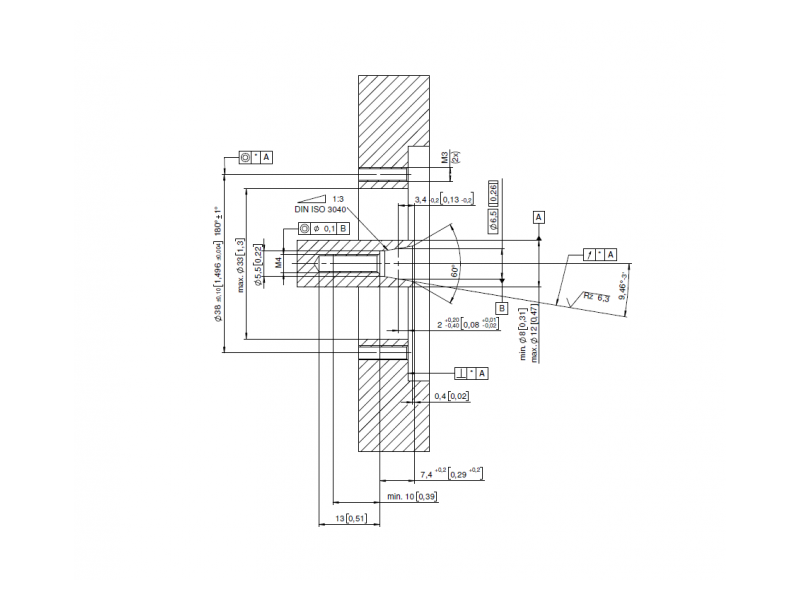

The Sendix S36 with optical singleturn and magnetic multiturn gears scores points with its combination of robustness and variety in a uniform compact dimension. With a size of 36.5 x 37 mm, it has a conical shaft or a plug-in shaft of 8 mm. Its high-precision optical electronics achieve a resolution of 19 bits. The incremental SinCos interface is available with 1024 or 2048 ppr.
Reliable and insensitive
Performance optimized
- Robust design for optimum functionality in the servo motor.
- Wide temperature range from -30 to +120°C – specially designed for use in servo motors.
- Special plug concept for fast and problem-free commissioning.
Performance optimized
-
Standard interface RS485 (Hiperface® 1) compatible)
+ SinCos for use in many standard servomotors. - Top performance by using max. 19-bit single-turn resolution, as well as 1024 or 2048 ppr SinCos.
- Mechanically suitable for attachment to standard servo motors.
| Mechanical | |
|---|---|
| Dimension | Ø 36 mm |
| Flange type |
Ø 36.00 mm Ø 38.00 mm Ø 40.50 mm Ø 42.00 mm Ø 60.00 mm |
| Working temperature | -30 °C ... +120 °C |
| Protection level | IP40 |
| Connection types | Printed circuit board connector |
| Max. rotational speed | 9.000 min-1 |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
2.048 ppr incremental 19 bits singleturn 12 bits multiturn |
| Supply voltage |
5 V DC 17...30 V DC |
| Interfaces |
BiSS RS485 + SinCos |
-
R60071.0009 1 BA S36x4 de en Web-BA
-
S3674-S3684 Motor-Line en
-
Sendix S3674 MTTFd 191017
