Multimeters and power analyzers

In the field of electricity quality analysis, regulation and measurement, we cooperate with the Turkish company KLEMSAN and are their representative for sales and technical support in the territory of Serbia and North Macedonia.

Under the analysis of electricity we mean the analysis and monitoring of all important quantities that characterize the quality of electricity. Analysis of the quality of electricity is one of the unjustifiably neglected segments in most plants, production facilities, etc., however, as the trend is to invest in achieving high energy efficiency and as various studies have shown that this can achieve real savings, measuring equipment, as well as equipment for the analysis of electricity is increasingly represented on the market. Also, the distributor's regulations require maintaining the power factor above a defined value, so monitoring the power factor in real time is of great importance. As more and more consumers in production facilities etc. are such that they introduce more harmonics into the network, we must also have control over these values ​​(THD%), so that we can react in a timely manner and install a choke, input filter, etc. The network analyzer KLEA measures higher harmonics up to the 51st harmonic order.

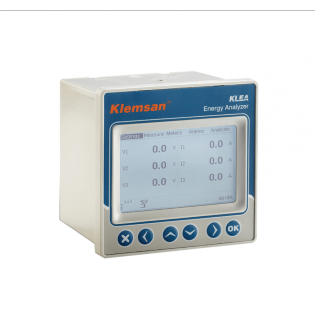

The devices manufactured by KLEMSAN that we supply and install to our clients perform precise measurements of all important quantities and provide us with information both in real time and from the device's memory. KLEA network analyzers provide monitoring of the following quantities:
- Measurement of power factor, active, reactive and apparent power and energy consumption
-Efficiency and power factor per phase
- Phase and line voltage, possible asymmetries
- Effective current values ​​per phase
- THD %
- Harmonics up to the 31st or 51st order
- They provide insight into voltage and current waveforms, as well as phasor diagrams

You can see the KLEA network analyzers above in the product overview in different versions with and without additional options.

KLEMSAN network analyzers KLEA are very easily connected via RS485 communication with other components in the system. They certainly have a large number of digital and analog input and output terminals and represent a high-tech, reliable product without which any energy-efficient plant cannot be imagined.

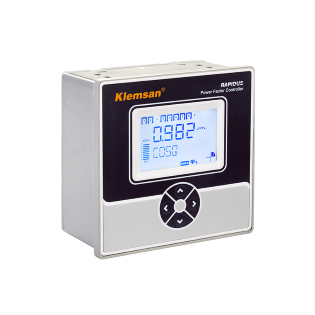

As for power factor control, we highlight RAPIDUS, a smart power factor controller that manages the consumption of reactive energy and has alarms that are activated when the power factor value falls below the permitted value and thus prevents the payment of penalties due to excessive consumption of reactive energy. This series is intended for both three-phase systems and single-phase systems. More detailed product characteristics can be found in the technical specification. RAPIDUS is definitely a device that contributes to the drive and like KLEA, it is easily connected to other components via RS485. Thanks to the DCM (Dynamic capacitator monitoring) feature, RAPIDUS enables preventive maintenance with the help of continuous power monitoring. Features:
-Modular design
-No need for a plug cable
-A device of the latest technology
- Modbus
-DCM technology
