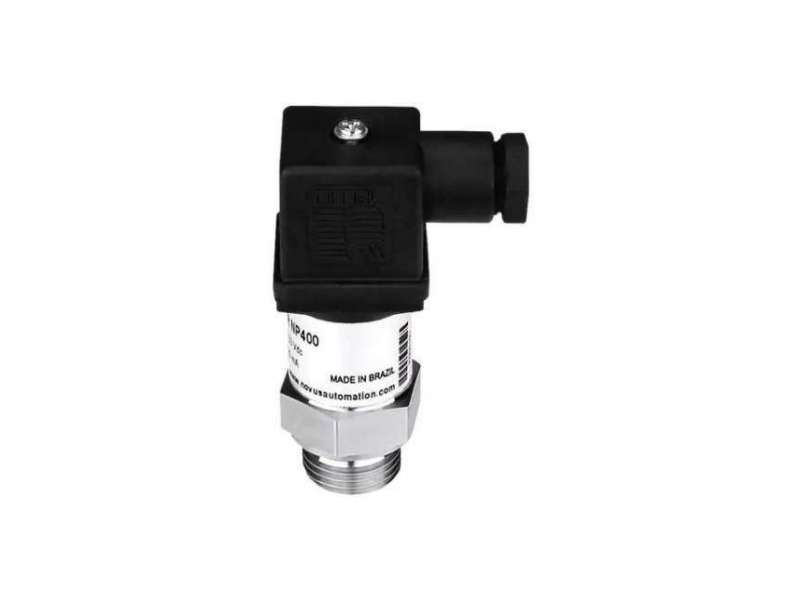

Name: NOVUS TP NP400 ceramic 1/2 NPT 4-20 mA: 0...50 bar; 8801512050
Brand: NOVUS
SKU: 8801512050
Price: 72.00 RSD
Availability: OutOfStock

NOVUS TP NP400 ceramic 1/2 NPT 4-20 mA: 0...50 bar; 8801512050

NOVUS TP NP400 ceramic 1/2 NPT 4-20 mA: 0...50 bar; 8801512050 - slika 1

NOVUS TP NP400 ceramic 1/2 NPT 4-20 mA: 0...50 bar; 8801512050

TP NP400 ceramic 1/2 NPT 4-20 mA: 0...50 bar; 8801512050...

Brand: NOVUS
Product Code: 8801512050
Availability: Check availability

VAT-exclusive price: 60,00 €

VAT-inclusive price: 72,00 €

Qnt:

TP NP400 ceramic 1/2 NPT 4-20 mA: 0...50 bar; 8801512050

- Process connection: external thread ¼ NPT, ½ NPT or ½ BSP
- Environmental conditions: -30 to 100 °C / -22 to 158 °F
- Materials in contact with the medium: 316L stainless steel, FKM (Viton ©) and ceramic sealing ring
- Output: 4-20 mA 2-wire
- Electrical connection: DIN 43650 (EN 175301-803)
- Overpressure: 2 times the nominal pressure
- Dynamic response: < 1 ms
- Power supply: 11-33 Vdc
- Relative pressure ranges available: see 'Models' section
- Accuracy, including hysteresis, linearity and repeatability: 0.5 % full scale (1.0 % for the 100 bar model)
- Dimensions:
¼ NPT: Ø 27 x 84,0 mm
½ NPT: Ø 27 x 89,0 mm
½ BSP: Ø 27 x 83,0 mm
