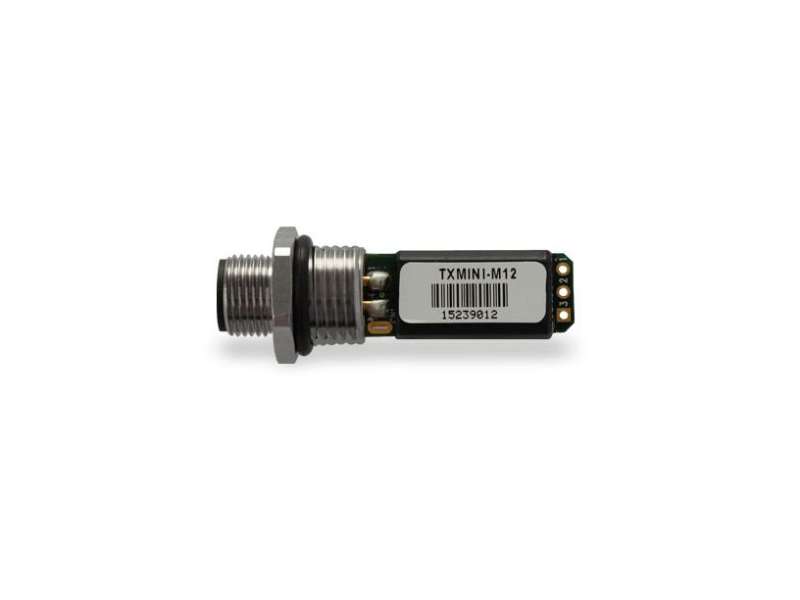

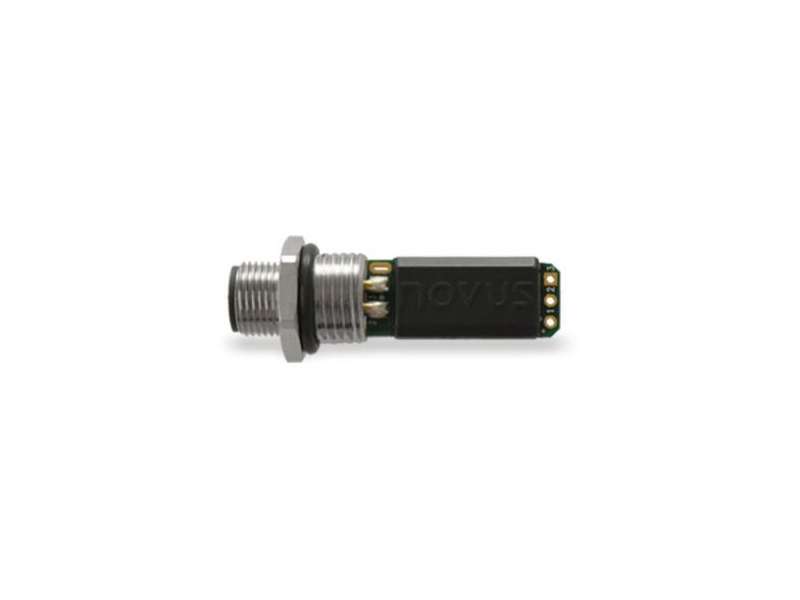

Name: NOVUS TxMini-M12 4-20 mA Temp. transmitter for Pt100 and Pt1000 input; 8806060406
Brand: NOVUS
SKU: 8806060406
Price: 46.80 RSD
Availability: OutOfStock

NOVUS TxMini-M12 4-20 mA Temp. transmitter for Pt100 and Pt1000 input; 8806060406

NOVUS TxMini-M12 4-20 mA Temp. transmitter for Pt100 and Pt1000 input; 8806060406

NOVUS TxMini-M12 4-20 mA Temp. transmitter for Pt100 and Pt1000 input; 8806060406...

Brand: NOVUS
Product Code: 8806060406
Availability: Check availability

VAT-exclusive price: 39,00 €

VAT-inclusive price: 46,80 €

Qnt:

NOVUS TxMini-M12 4-20 mA Temp. transmitter for Pt100 and Pt1000 input; 8806060406

- 4-20 mA output on power loop
- Power supply: 8 to 35 Vdc
- Pt100 / Pt1000 in
- Pt100/Pt1000 3-wire connection
- Configurable measurement range
- Distinctive accuracy (Tamb 25 °C): 0.1 % on span
- Operating temperature: -40 to 85 °C
- Windows® configurator with USB interface
- Linearized output
- Resolution: 2 µA
- Sensor’s failure: configurable output on up-scale or down-scale
- Dimension:
TxMini-M12: 51.2 x 12.2 x 8.0 mm
TxMini-DIN43650: 28.5 x 28.5 x 14.0 mm
TxMini: 30 x 12.2 x 8.0 mm
