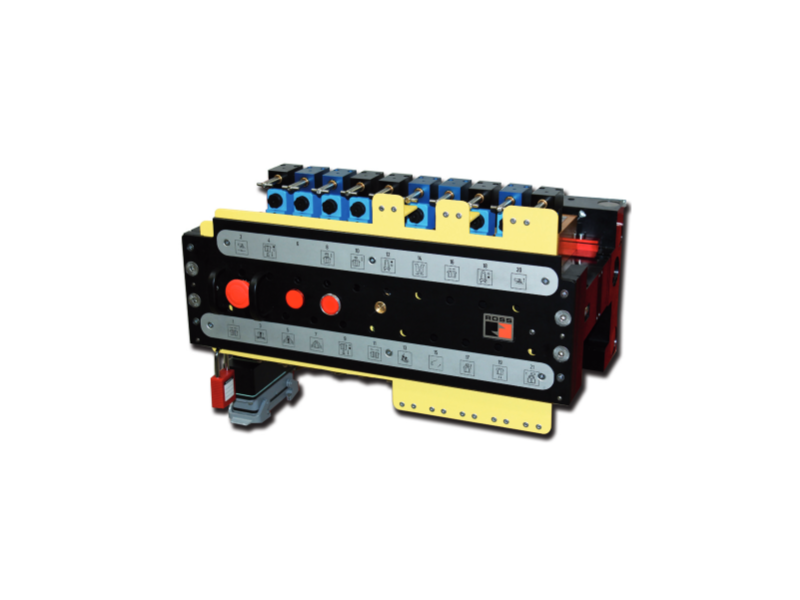

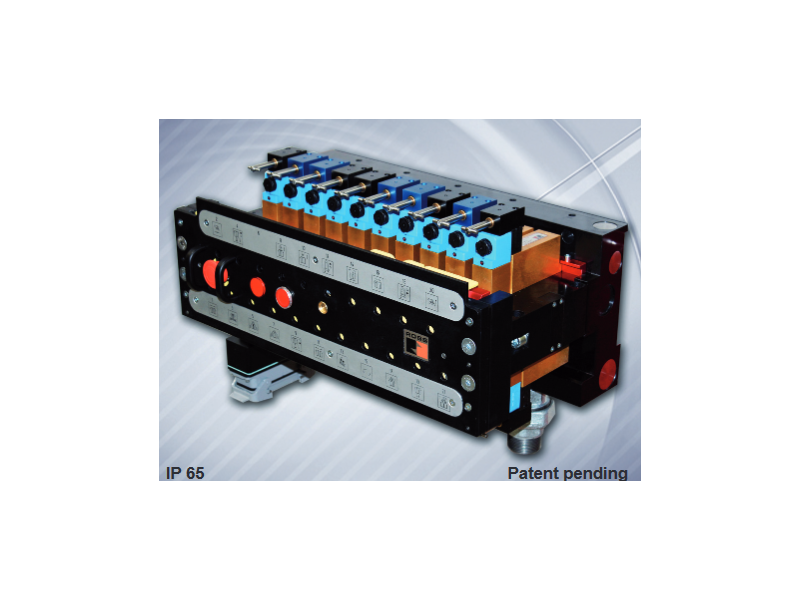

ROSS EUROPA 21-Valve Block ; 21VB
The Compact Solution for Minimized Downtimes on IS Glass Machines Quick-and-easy exchange feature Very precise air return poppet Highly reliable, accurate switching...
Price on request
The Compact Solution for Minimized Downtimes on IS Glass Machines
Quick-and-easy exchange feature
This extremely compact multifunctional package can provide pilot air for the main control valves as well as directly control- ling the actuators for cylinder applications
Quick-and-easy exchange feature
Very precise air return poppet
Highly reliable, accurate switching
Rugged manual actuators involved
All valves with indicator lights
High flow characteristics
This extremely compact multifunctional package can provide pilot air for the main control valves as well as directly control- ling the actuators for cylinder applicationsSTANDARD SPECIFICATIONS
Temperature Range: Ambient: 4° to 80°C. Media: 4° to 105°C.Flow Media: Filtered air. Pressure Range: 1 to 6 bar. Enclosure Rating: IP 65.
Power Consumption: 3.5 W nominal.
Standard Voltage: 24 VDC.
Coil: 100 % ED.
Actuation Time: 20 ms. Flow of Valve: 4500 Nl/min. Nominal Diameter: 14 mm
-
GlassInfoSheet
