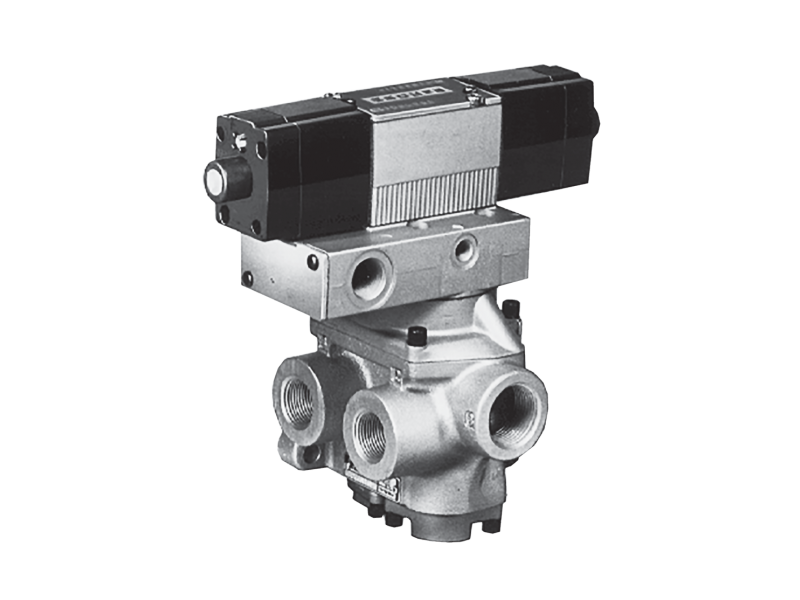

ROSS EUROPA Double Solenoid Pilot Inline Valve 4/2 ; D2776B2003W
¼” to 2 ½” Port Sizes Poppet valves Inline mounted High Flow Rate...
Price on request
- ¼” to 2 ½” Port Sizes
- Poppet valves
- Inline mounted
- High Flow Rate
| Function | 4/2 Single |
| Return Type | Detented |
| Default Position | - |
| Actuation | Direct Solenoid Controlled |
| Port Size (in-Out) | 1/4 |
| Port Size (Exhaust) | 1/2 |
| Port Thread | BSPP |
| Basic Size | 3/8 |
| Adapter | - |
| Cv (In-Out) | 2.1 |
| Cv (Exhaust) | 2.9 |
| Voltage | 24 VDC |
| Construction | Poppet |
| Mounting | Inline |
| Manual Override | Non-locking |
| Connector Type | Hard wired (1/2 inch conduit) |
| Certifications | SIL |
| Flow Media | Filtered Air |
| Inlet Pressure Range | 15 TO 150 PSIG (1 TO 10 BAR) |
| Media Temperature Range | 40 TO 175 F (4 TO 80 C) |
| Ambient Temperature Range | 40 TO 175 F (4 TO 80 C) |
| WEIGHT: | 4.0 lbs (1.81 kg) |
-
Series D27
-
ROSS 27 Series Poppet Valve And Adaptors Installation Instructions SS096
-
ROSS Pneumatic Directional Control Valves 27 Series
