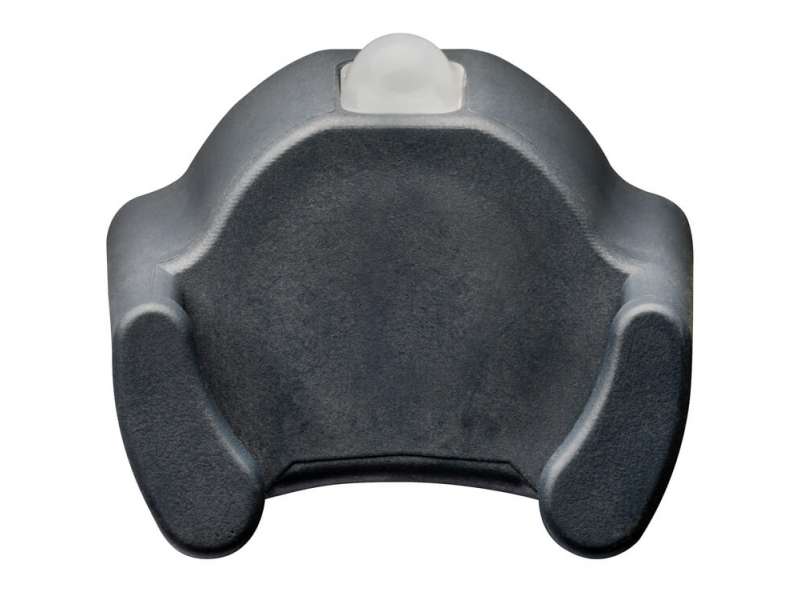

EUCHNER Electronic-Key adapter EKS Front hook modular FHM, with flying lead ; 106585
EKS-A-SFH-G30-2000 Small design for installations where there is little space Installation in standard assembly hole Ø 22.5 mm Closed design, rounded contours...
Цена по барање
EKS-A-SFH-G30-2000
- Small design for installations where there is little space
- Installation in standard assembly hole Ø 22.5 mm
- Closed design, rounded contours for hygienic areas
- Plastic with high resistance to media
- IP 69K
- Cable 2 m with flying lead
Approvals
Mechanical values and environment
| Housing material | |
| Housing | PVDF GF30 gray |
| Ambient temperature | |
| -20 ... 100 °C | |
| -20 ... 70 °C | |
| Degree of protection | IP65,IP67,IP69K in installed state (only access side) |

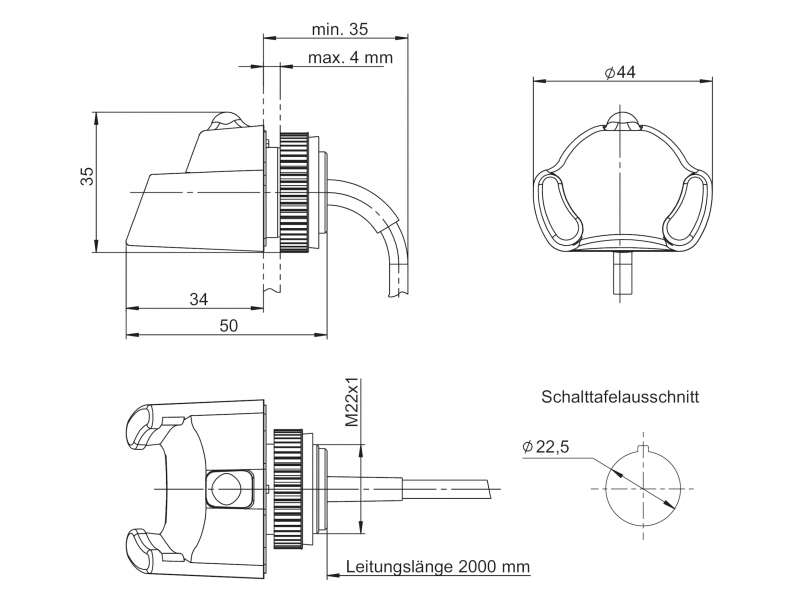

| Mounting method | 22,5 Assembly hole in mm |
| Installation orientation | On the front |
| Connection | Connection cable 4 x 0.25 mm² screened, flying lead |
| Cable length | 2 m Cable sheath PVC |
| Cable diameter | 4,6 mm |
| Bending radius | |
| static | 5x cable diameter |
Electrical connection ratings
| LED display | |
| Green | Electronic-Key adapter ready |
| Yellow | Key in operating distance |
| Red | Fault |
