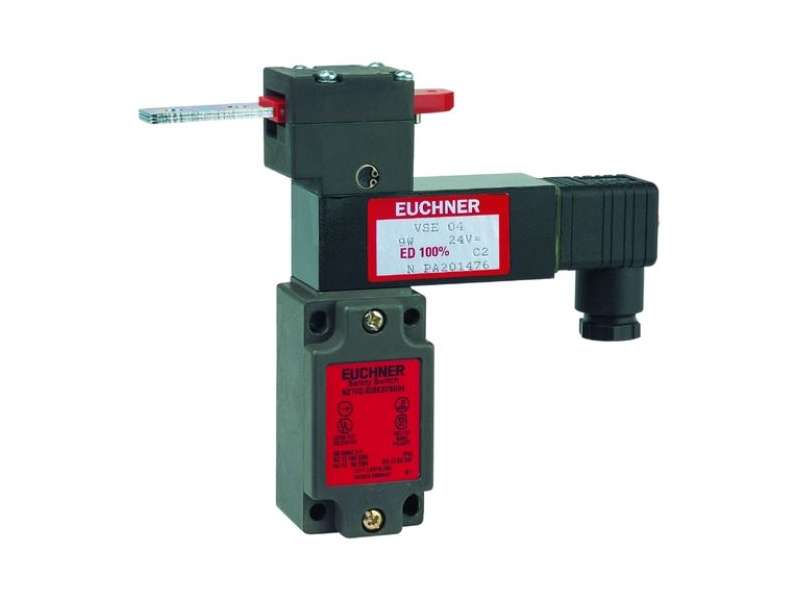

EUCHNER Safety switch NZ.VZ.VSM (guard locking, closed-circuit current principle) NZ1VZ-528E3VSM04-M; 082125
Safety switch NZ.VZ.VSM (guard locking, closed-circuit current principle) NZ1VZ-528E3VSM04-M; 082125 Housing according to EN 50041 Cable entry M20 x 1.5...
Цена по барање
Safety switch NZ.VZ.VSM (guard locking, closed-circuit current principle) NZ1VZ-528E3VSM04-M; 082125
- Housing according to EN 50041
- Cable entry M20 x 1.5
Approvals
Electrical connection values
| Connection cross section | 0.34 ... 1.5 mm² |
| Rated insulation voltage Ui | |
| AC/DC | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| DC-13 | 4 A 24 V |
| AC-15 | 4 A 230 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Solenoid operating voltage | |
| DC | 24 V -15% ... 10% |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Approach direction | A |
| Connection type | |
| 1 x | M20 x 1.5 |
| Number of door position NO contacts | 1 |
| Number of door position positively driven contacts | 1 |
| Extraction force | 40 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 45 N |
| Installation orientation | any |
| Insertion depth | 52 mm |
| Solenoid alignment | 3 |
| Mechanical life | 2 x 10⁶ |
| Retention force | 35 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP65 |
| Ambient temperature | -25 ... +80 °C |
| Material | |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
| Locking force Fmax | 2000 N |
| Locking force FZh | 1500 N |
| Guard locking principle | Closed-circuit current principle |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| Control of guard locking | |
| Category | Depending on external control of guard locking |
| Performance Level | Depending on external control of guard locking |
| PFHD | Depending on external control of guard locking |
| Monitoring of the guard position | |
| B10D | 4.5 x 10⁶ |
In combination with actuator ACTUATOR-Z-G
| Overtravel | 4 mm |
In combination with actuator ACTUATOR-Z-GN
| Overtravel | 16 mm |
