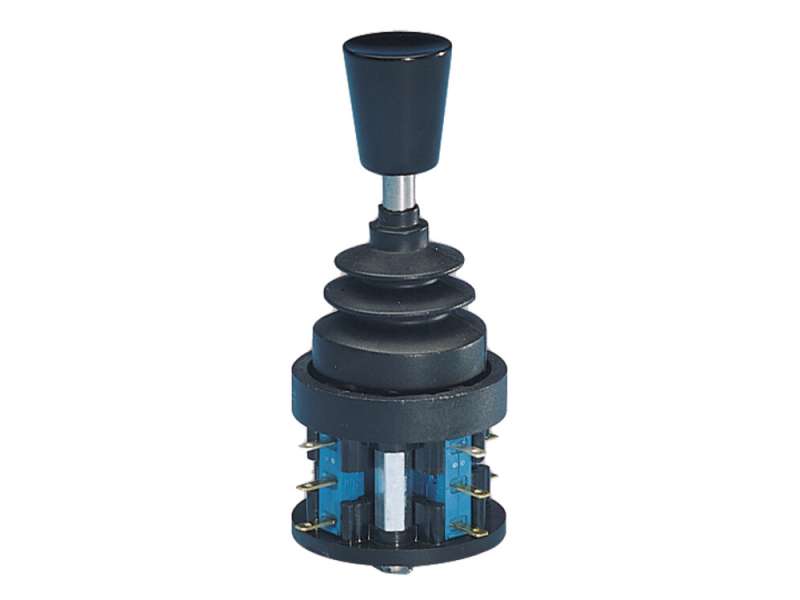

EUCHNER Series KE KES1T234 ; 029007

Front panel installation according to IEC 947-5-1 D22 1 to 8 actuating directions, 4 switching elements. Stayput switch, spring return switch or combined One changeover...

Бренд: EUCHNER
Код: 029007
Достапност: Проверете ја достапноста
Цена по барање
  • Front panel installation according to IEC 947-5-1 D22
  • 1 to 8 actuating directions, 4 switching elements. Stayput switch, spring return switch or combined
  • One changeover contact with tab connector 2.8 x 0.5 IEC 760 for each actuating direction
  • Center position switch

Approvals

Zulassung EACZulassung DNV GLZulassung CCC

Mechanical values and environment

Material
  Switching lever stainless steel
  Bellows elastomer black
  Housing thermoplastic
Weight
Net 0,1 kg
Ambient temperature -25 ... 65 °C
Degree of protection IP65 on the front with bellows
Mechanical life 1 x 106
Contact material Silver alloy

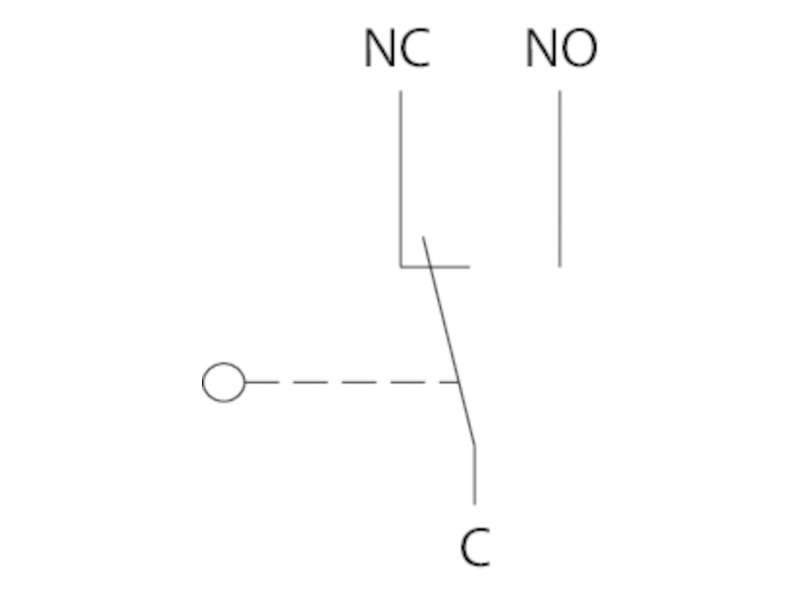

Switching principle changeover contact C IEC 947-5-1

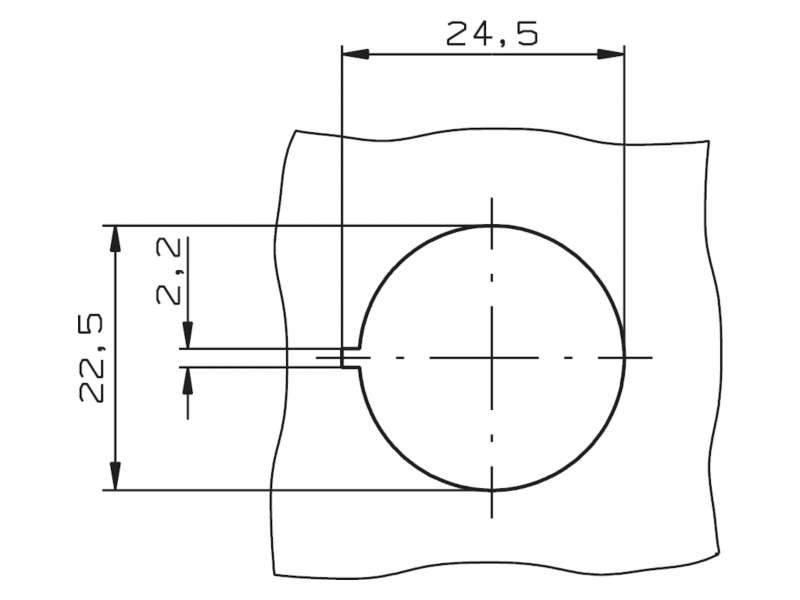

Mounting method IEC 947-5-1 D22
Number of monitoring contacts 4
Connection Tab connector 2.8x0.5 IEC760
Actuating directions 4

Electrical connection ratings

Utilization category according to EN 60947-5-1
AC-15 230V 4A
DC-13 24V 2A
Short circuit protection according to IEC 60269-1 T10 / F20
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2,5 kV
Switching voltage min.10 V
Switching current
(at 24V) min.12 mA
  • Katalog Joystik Switches

    Katalog Joystik Switches
